Core Features

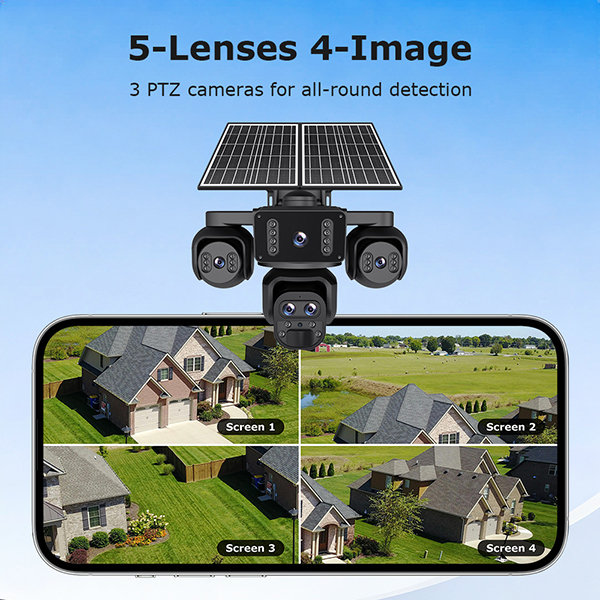

•5 lens 4-screen and One 10X Zoom lens simultaneous all-day low-frame-rate recording

Basic Features

•Motion detection combined with human form algorithm significantly extends detection range and improves accuracy in identifying moving targets

•Utilizes efficient H.265 encoding technology for more stable video transmission, eliminating lag and motion blur

•Manually adjustable small lens images on both sides, combined with the central fixed image + PTZ camera image, enabling comprehensive multi-angle surveillance

•14W monocrystalline silicon solar panel for powerful supplementary charging, 20100mAh built-in large-capacity lithium battery for extended endurance

•Built-in microphone and speaker supporting full-duplex two-way audio

•Supports cloud storage and local TF card storage

•App supports Android/iOS; product is stable and reliable

•Dual solar panel mounting design, compact size, low shipping cost, IP65 outdoor waterproof rating

•Adjustable bracket design meets various installation scenario requirements

•Supports multiple network pairing methods (Bluetooth, QR code scan) for simpler operation

AI Features

Human Detection (Motion Detection On)

Alarms trigger only when a person is detected, effectively improving alarm accuracy

Human Tracking (Motion Detection On)

Automatically tracks the movement trajectory of a human form when enabled

Detection Zone Setup (Motion Detection On)

Defines specific areas to be monitored

Cruise

Supports vertical, horizontal, and multi-point cruise (not recommended as it affects battery life)

Guard Position

After deviating from the set guard position for a period, the PTZ automatically rotates back to the designated guard position

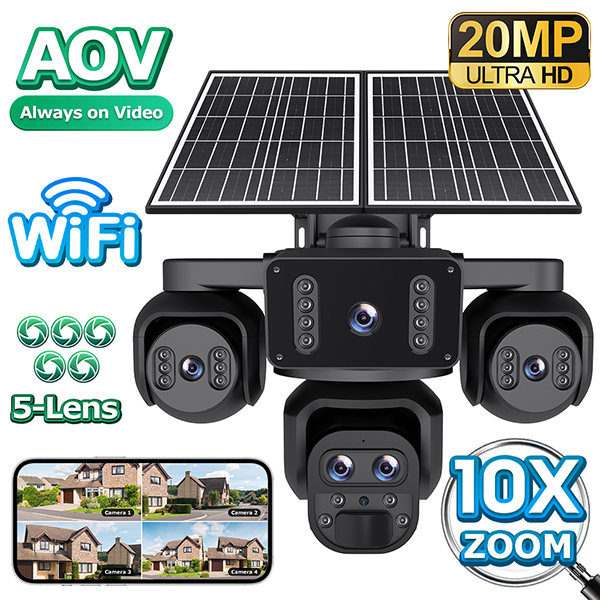

Product Name

AOV Five-lens Solar Camera

Model

AY-SCW1798G-AOV-5L

System

Linux

Video

Image Sensor

1/3.3" GC20C3 Low-light CMOS Sensor

Lens

4mm + 4mm+4mm+4mm+12mm

Image Output

4-channel snapshot max. 2960*(1665×4) pixels; 4-channel recording max. (1920*1080)×4 pixels

Video Encoding

H.265

Noise Reduction

Supports 2D/3D noise reduction

Wide Dynamic Range (WDR)

Supports Digital WDR

Fill Light

24pcs IR LEDs + 24pcs White LEDs

Audio

Audio Input

Supported

Audio Output

Supported

Simplex/Full-duplex Voice Call Function

Supported

Night Vision Modes

Super Night Vision

AOV alarm/wake-up recording uses white light fill (AOV snapshot mode uses IR fill, IR light flashes)

Black & White Night Vision

AOV snapshot and alarm/wake-up recording both use IR fill, AOV night vision snapshot IR light flashes

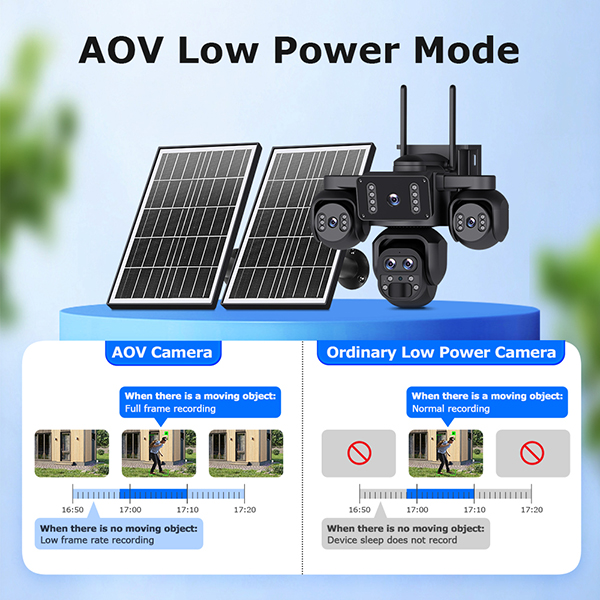

AOV Frame Rate (Configurable)

1S, 2S, 5S, 10S, 15S (Shorter intervals improve monitoring effect but reduce battery life)

Network Bands

Adapts different 4G modules according to different countries

SIM

Nano SIM

Network Pairing Method

Pairing Methods

Supports Bluetooth pairing, QR code scan pairing

Recording Modes

Normal Recording

15fps

Time-lapse Recording

Low-frame-rate recording (frame rate configurable, default 1 frame per second)

Power Supply

Built-in Battery

Capacity 20100mAh

Solar Power Supply

External 14W solar panel

Value-added Services

4G Data Service

7-day trial, requires top-up after 7 days

Cloud Storage Service

Requires activation

Other

TF Card Storage

Supports TF Card 4GB-128GB

Waterproof Rating

IP66

Operating Environment

Operating Temperature

-20℃ ~+65℃

Operating Humidity

≤80%RH

APP

okam
