Product Parameter

Model number

AY-MDCK26

Screen

2.0inch IPS screen , 320x240P MIPI interface

CPU

SA230D  Arm Cortex-A7 CPU+RISC-V CPU

DDR

1GB DDR3L

4G Module

Quectel EC800K

Storage

RAM

128MB

ROM

128MB

GPS

Built in GPS+Beidou dual module GPS antenna

OS

Linux

Network Band

4G FDD-LTE: B1/B3/B5/B8, TDD-LTE: B38/B39/B40/B41 , Cat1
3G WCDMA: B1/B5/B8

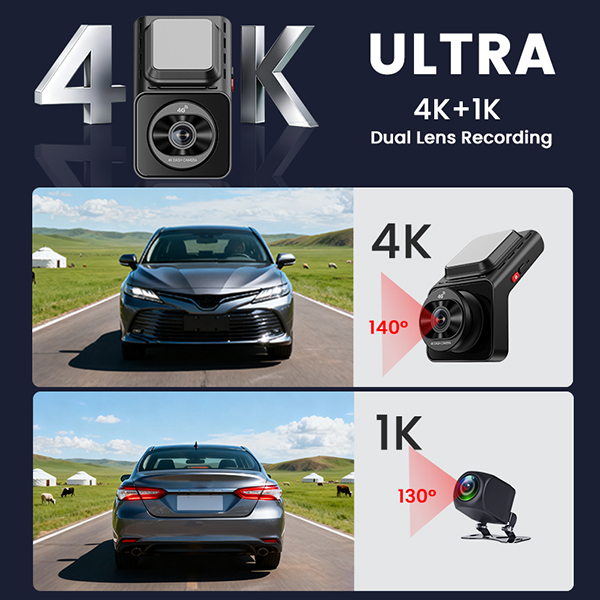

Dual camera resolution

Front camera is 4K/3840*2160@25fps ,wide angle 140 °;
Back camera is 1K/1920x1080@25fps , wide angle view is 130°

Remote monitor

Support mobile APP remote live-view and monitor, remote playback/capture image,
remote TF card formatting, remote restart, remote download video files from sd card.

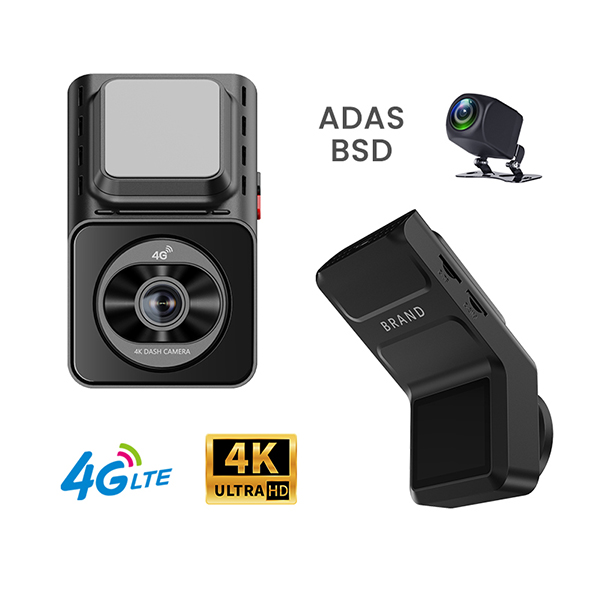

BSD

Support

ADAS

Support

GPS track history playback

Support

Video file playback and download

Support check video file by SD card or download the video file into mobile phone to playback

G-Sensor

3-axis G-Sensor, support Loop Recording

Parking Monitor

3-axis G-Sensor, support Parking Monitor

Time lapse

Support 12Hrs or 24Hrs time lapse recording

Video compression format

H.264

Video format

TS

Software upgrade

Upgrade by TF card, OTA online upgrade.

WiFi

802.11 b/g/n 2.4Ghz; support wifi hotspot

External memory card

Support micro sd card, maximum 512GB(not included)

 MIC

Build in MIC-Phone Noise Reduction

Speaker

Build in speaker ( 1.5W/8R speaker)

Key button

2 buttons

RESET

Support

Powered by

External power

DC12V, Type-C plug-in Input 12V, support 12~24V

ACC

Support ACC checking

Temperature
and humidity range

Temperature

Usage: -20~+70°C

Storage: -30~+80°C

 Mobile APP name is "CloudSpirit"  for Android/ iOS

App for Android/iOS

CloudSpirit

Real-time preview

Yes

Remote capture image

Yes

Remote capture video

Yes

Monitor and Alarm

Yes, Support Message / photo alarm if collision happened when car parking

GPS logger track history playback

Yes, could support 6 months GPS history search and playback

Two way voice talk

Yes, just need press the app microphone button one time, and then could talk to the driver

Live-view image Zoom in & Zoom out

Yes, support live-view window image zoom in & zoom out

Video download

Yes, support remotely download video files from sd card

Administrator

The first user who bind the dashcam , will become the administrator,
the admin account could share the QR code to other user to monitor this dashcam, also could the user account as need.
