ü  Max 4CH AHD H.265 video recording

ü  AI-Powered, ADAS, DSM All-in-oneterminal

ü  GPS positioning, tracking supported

ü  4G remote management with freeplatform software

ü  Alarm video, photos attachmentsupload, Data Analysis reports

ü  TTS, WIFI hotspot, OTA upgrade, etc.

ü  Suitable for Bus, coach, taxi,truck, etc.

 Product Profile

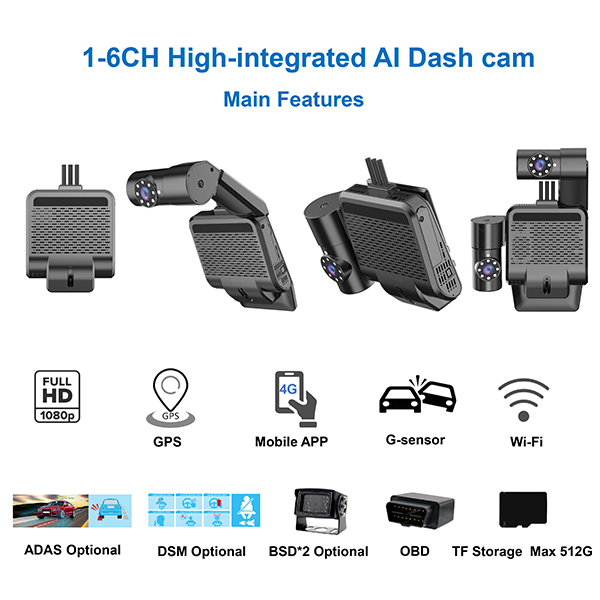

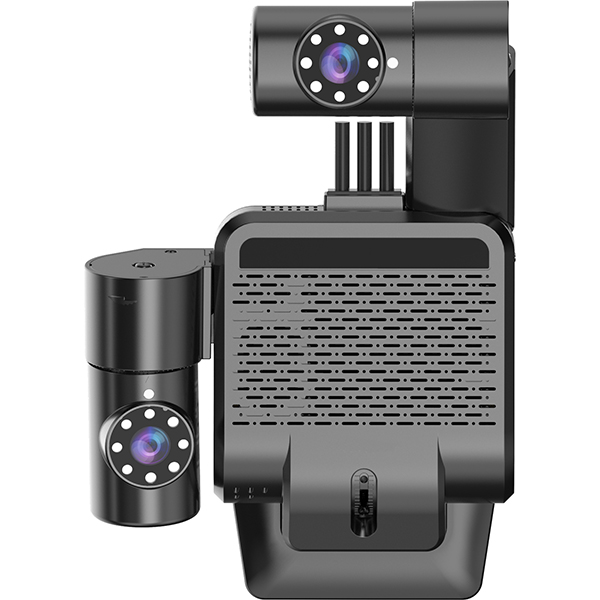

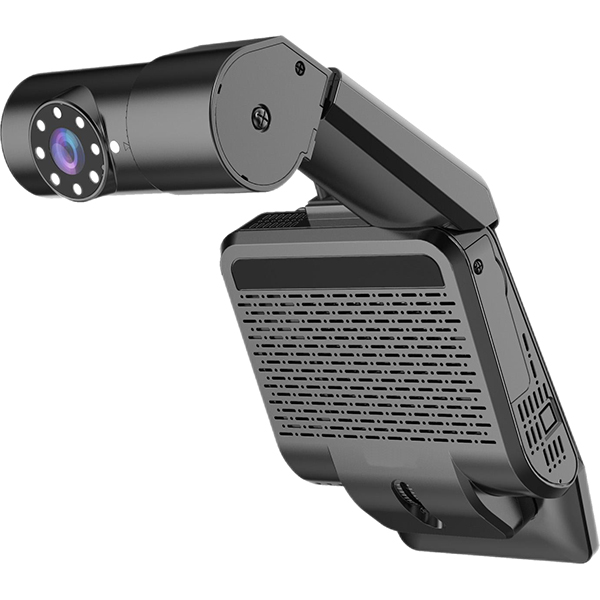

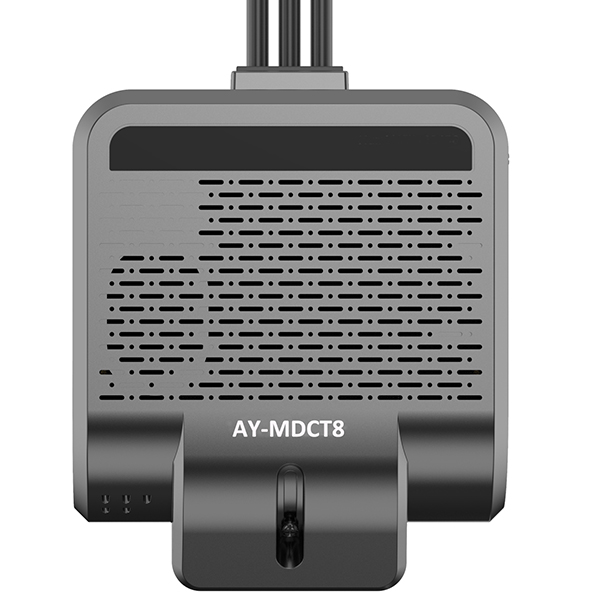

AY-MDCT8 is oneof our professional AI-powered ADAS design dashcam with DSM optional. Thiscamera design is much better fitted (100%) front windscreen installationwithout reflection than the traditional fitted design. One built-in ADAS camerawith lens can be vertically adjusted and fixed. Can flexibly add 1 to 3cameras. Different combination for quick setup in different cases.

Advanced Features:

①　H.265/H.264 hardware compression, powerfulAI processor, with neuronal logic reasoning engine, support for deeplearning algorithm.

②　Integrated ADAS camera,can expand 1 or 2 AI camera input. Support DSM and environmental monitoring.

③　ADAS (Advanced Driver AssistanceSystems)——Integrated with ADAS camera, supportslane departure detection and warning, forward collision detection andwarning, headway monitoring warning, pedestrian collisionwarning

④　DMS (Driver Monitoring System)——warnings will be given to remind drivers and uploaded intothe VMS once DMS camera detects dangerous driving behaviors such as: fatigue(closing eyes, yawning), distraction, smoking, callingetc

⑤　Driver face recognition function——check attendance driver,avoid Non-compliant driver operations, etc.

⑥　Beidou /GPS positioning, support tracking.

Specifications

v  ABS+PC material, Small size,can be directly attached to the front windshield by 3M glue. The connection issimple and convenient, and the installation can be completed only in 1/20 ofthe installation time of the traditional terminal.

v  Themachine has a high reliability design, can achieve continuous monitoring in -30℃~80℃environment.

v  Thewhole structure has good disassembly and dust proof design, to ensurethat TF card, SIM card, antenna and connection port are not damaged.

v  The host canintegrate a variety of video algorithms. The front camera supports ADAS. Optional DSMcamera implements driving behavior analysis.

v  1 channelaudio input. Integrated high sensitivity MIC, can record in-car audio,and support voice intercom. Host integrated speaker for audio broadcast and warning.

v  The hostintegrates 5 statusindicators to observe the operating status of the device in real time.

v  External 1alarm button (SOS).

v  Support GPS/BDpositioning module to achieve speed, position, time and route management.Support alarm of module abnormality and antenna abnormality.

v  Support Electricfence such as route deviation and area entry and exit alarm, the device cansave a maximum of 16 lines and areas.

v  Integrated4G full network communication module, can realize remote monitoring andmanagement.

v  Built-in G-SENSORmodule can realize automatic alarm uploading for abnormal vibration, rollover, impact and emergency brake.

v  Integrated WIFImodule to connect test APP for configuration or doing settings.

v  8V~36V adaptivewide voltage input, ultra-low power consumption. Support reverse connectionprotection and overload protection. Supports 12V power output.

v  Professionaland reliable file system to ensure the accuracy and stability of video data andstorage media.

v  TF card storage issupported. A single card supports a maximum of 512 GB. Support for hotswap.

v  Max 3CH IO alarm input, 1CHRS232. Support extended serial ports.

v  SupportTTS voice function, can achieve English and Chinese TTS schedulingbroadcast.

v  Supportalarm button emergency alarm trigger snap pictures

v  Delayshutdown function, delay time can be set.

v  It canrealize ultra-low power sleep mode and continue to report the location. Keepposition d.

v  Theprofessional platform software can realize the remote monitoring andmanagement function of computer and mobile phone.

v  Optionalside-mounted camera can realize DMS function or in-car monitoringfunction. The Angle of the side-mounted camera can be adjusted horizontally tosupport movement.

v  Ultra-lowpower consumption design, less heat, fast start!

Parameter
