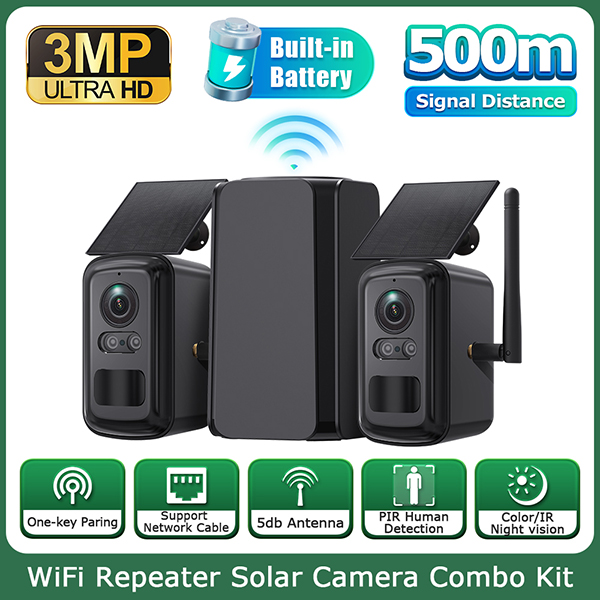

Home Hub Combo Kit
1.Low-frequency WiFi transmission 900meters Transfer Distance
2.Support 2.4GHZ and 5GHZ
3.Onekey plug and play
4.RJ45 Connected ,NO need 4G sim card ,network very stable stable
5.Wide Size PIR for the Camera ,PIR distance about 12Meters
6.Human Detections, Time period alarm,Area alarm
Product name |
Home Hub Combo Kit |
|
Brief Introduction |
1. Low-frequency WiFi transmission 900meters Transfer Distance |
|
Core functionality |
Ultra-long distance camera connection (more than 900M distance for multiple camera transmissions in an open and interference-free area) |
|

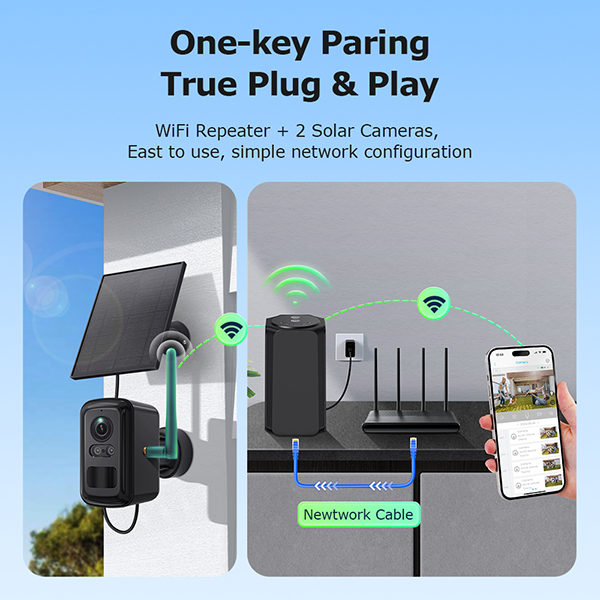

Host support network cable and wifi networking, a home Hub (AY-SH01) host can be paired with 2-4-way camera AY-SCW1018, video online stability |
||
Basic Functions |
• PIR alarm push, low false alarm rate |
|
•Built-in microphone and speaker, support full-duplex voice intercom |
||
•Solar cam(AY-SCW1018)Camera: with 3W solar panel, built-in 8000MA high-capacity lithium battery,long-lasting endurance |
||
•home Hub(AY-SH01)Host: support wired/wifi dual-mode access to the network, more stable connection |
||
•Solar cam(AY-SCW1018)Camera: support infrared night vision and full color night vision dual mode switching |
||
•The camera supports cloud storage and local TF card storage. |
||
•APP support Android/IOS, product stability and reliability |
||
•Compact size, low shipping cost, IP66 outdoor waterproof |
||
•Host and camera long-distance WIFI transmission, suitable for farms, estates, orchards, villas and other vast areas of |
||
AI Features |
human detection |
Turned on to increase humanoid trails and reduce false alarms |
Deployment time |
Customize the trigger activity interval |
|
Activity Area Setting |
Define a specific area to be detected |
|
Product name |
Home Hub Combo Kit |
|
Home Hub Mainframe (AY-SH01) |
||
controller chip |
Junzheng ingenic T23 |
|
systems |
Linux/RTOS |
|
Power supply |
USB 5V/1A /USB_TYPE-C electricity supply |
|
distribution method |
APP supports Bluetooth BLE and QR code distribution. |
|
home hub network access |
Indoor Placement: Network cable directly connected to router or wireless connection to 2.4G/5.8G router. |
|
home hub TF cardinterface |
Supports software upgrades and factory testing only |
|
Number of camera connections |
U.S. version: up to 4 cameras at the same time, European version: up to 2 cameras at the same time |
|
indicator light |
Trunk Status Indicator (NET) |
|
LED1-LED4 is always on: it means camera 1-camera 4 is successfully networked with the host computer. |
||
external interface |
USB power supply port |
|
100Gb Ethernet port |
||
button or key |
Reset: Restore factory settings; sync: Fast pairing of multiple cameras |
|
horn (automobile etc) |
8Ω/1W |
|
Solar camera(AY-SCW1018) |
||
controller chip |
Junzheng ingenic T32ZL |
|
systems |
Linux/RTOS |
|
image sensor |
1/2.9-inch CMOS sensor |
|
Live Stream Preview |
HD: 2304*1296/15fps; SD: 640*360/15fps |
|
Night vision mode |
Infrared HD night vision (2 infrared lamp beads) / White light full color night vision (2 white light lamp beads) |
|
Power supply method |
Built-in Li-ion battery (8000mAh) + 3W solar panel for continuous battery life |
|
distribution method |
Supports Bluetooth BLE and QR code scanning. |
|
Network Access Methods |
WIFI connection to the host home Hub with an open transmission distance of more than 600 meters. |
|
Storage Methods |
Compatible with both cloud storage and local TF card storage (supports up to 128G TF card) |
|
Event Detection |
PIR Detection Distance 10 meters |
|
AI function |
Motion detection. Humanoid detection. |
|
playback |
Supports local TF card playback (free) + cloud video playback (requires purchase of value-added services) |
|
indicator light |
Red and blue status indicator |
|
Green charging indicator |
||
button or key |
Reset button: Restore factory settings / Pairing function |
|
Power Button: On/Off Function |
||
microphone |
High sensitivity -38dB |
|
horn |
8Ω/1W |
|
waterproof rating |
IP66 |
|
operating temperature |
-20℃ ~+60℃ |
|
Operating humidity |
≤80%RH |
