Product name

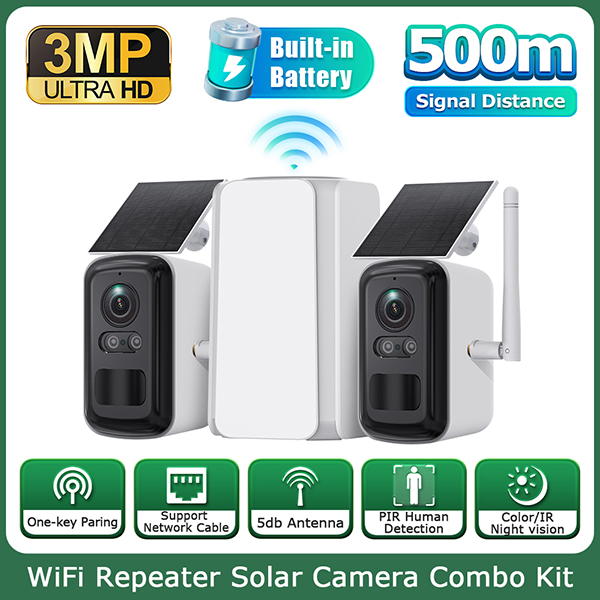

Home Hub Combo Kit

Brief Introduction

1. Low-frequency WiFi transmission 900meters Transfer Distance
2.Support 2.4GHZ and 5GHZ

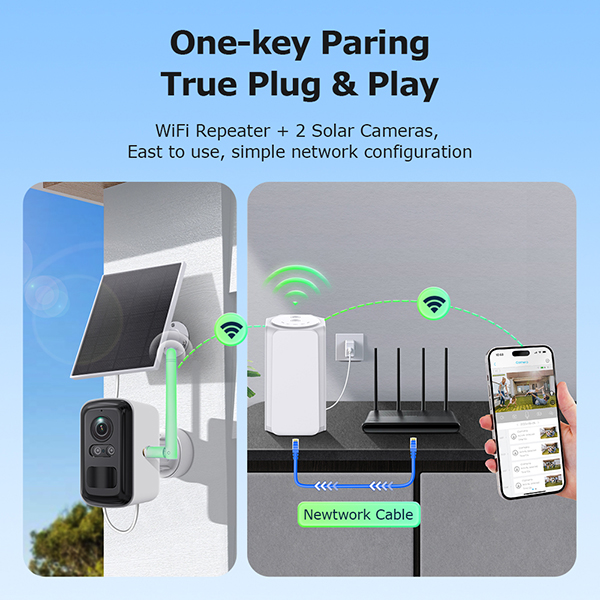

3.One key plug and play
4.RJ45 Connected ,NO need 4G sim card ,network very stable stable
5.Wide Size PIR for the Camera ,PIR distance about 12Meters
6.Human Detections, Time period alarm,Area alarm

Core functionality

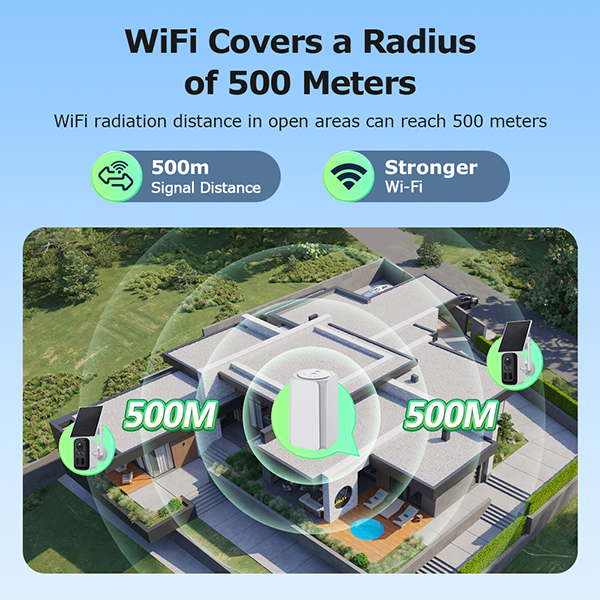

Ultra-long distance camera connection (more than 900M distance for multiple camera transmissions in an open and interference-free area)

Host support network cable and wifi networking, a home Hub (AY-SH01) host can be paired with 2-4-way camera AY-SCW1018, video online stability

Basic Functions

• PIR alarm push, low false alarm rate

•Built-in microphone and speaker, support full-duplex voice intercom

•Solar cam(AY-SCW1018)Camera: with 3W solar panel, built-in 8000MA high-capacity lithium battery,long-lasting endurance

•home Hub(AY-SH01)Host: support wired/wifi dual-mode access to the network, more stable connection

•Solar cam(AY-SCW1018)Camera: support infrared night vision and full color night vision dual mode switching

•The camera supports cloud storage and local TF card storage.

•APP support Android/IOS, product stability and reliability

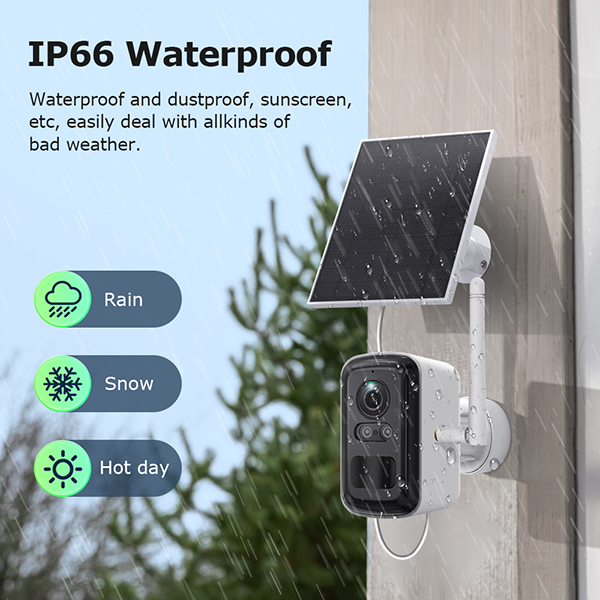

•Compact size, low shipping cost, IP66 outdoor waterproof

•Host and camera long-distance WIFI transmission, suitable for farms, estates, orchards, villas and other vast areas of
video surveillance needs.

AI Features

human detection

Turned on to increase humanoid trails and reduce false alarms

Deployment time

Customize the trigger activity interval

Activity Area Setting

Define a specific area to be detected

Product name

Home Hub Combo Kit

Home Hub Mainframe (AY-SH01)

controller chip

Junzheng ingenic T23

systems

Linux/RTOS

Power supply

USB 5V/1A /USB_TYPE-C electricity supply

distribution method

APP supports Bluetooth BLE and QR code distribution.

home hub network access

Indoor Placement: Network cable directly connected to router or wireless connection to 2.4G/5.8G router.

home hub TF cardinterface

Supports software upgrades and factory testing only

Number of camera connections

U.S. version: up to 4 cameras at the same time, European version: up to 2 cameras at the same time

indicator light

Trunk Status Indicator (NET)

LED1-LED4 is always on: it means camera 1-camera 4 is successfully networked with the host computer.

external interface

USB power supply port

100Gb Ethernet port

button or key
(on a device)

Reset: Restore factory settings; sync: Fast pairing of multiple cameras

horn (automobile etc)

8Ω/1W

Solar camera（AY-SCW1018）

controller chip

Junzheng ingenic T32ZL

systems

Linux/RTOS

image sensor

 1/2.9-inch CMOS sensor

Live Stream Preview

HD: 2304*1296/15fps; SD: 640*360/15fps

Night vision mode

Infrared HD night vision (2 infrared lamp beads) / White light full color night vision (2 white light lamp beads)

Power supply method

Built-in Li-ion battery (8000mAh) + 3W solar panel for continuous battery life

distribution method

Supports Bluetooth BLE and QR code scanning.

Network Access Methods

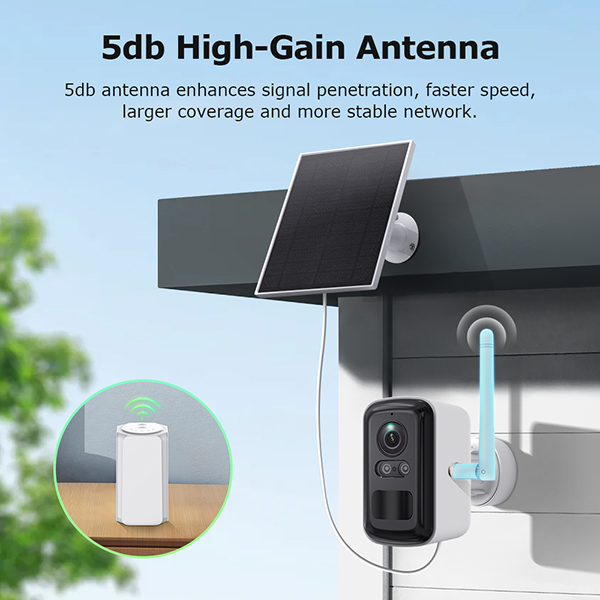

WIFI connection to the host home Hub with an open transmission distance of more than 600 meters.

Storage Methods

Compatible with both cloud storage and local TF card storage (supports up to 128G TF card)

Event Detection

PIR Detection Distance 10 meters

AI function

Motion detection. Humanoid detection.

playback

Supports local TF card playback (free) + cloud video playback (requires purchase of value-added services)

indicator light

Red and blue status indicator

Green charging indicator

button or key

Reset button: Restore factory settings / Pairing function

Power Button: On/Off Function

microphone

High sensitivity -38dB

horn

8Ω/1W

waterproof rating

IP66

operating temperature

-20℃ ~+60℃

Operating humidity

≤80%RH
