High quality recording: Record resolution up to 2650x1440 (1440P).
Live Streaming: The camera has the ability to stream in real time via 4G or WiFi connectivity. The operator can also understand the wearer's position by built-in GPS. Alternatively, camera wearer can send an alert back to the control centre with their live video, GPS location details.
40-Hour full shift battery life: Up to 40 Hour Battery Life ensures your camera lasts a whole shift which is critical to ensuring recording capability.
Record file protection: Using the AES256 encryption technology, the record file in the camera will be safe and protected from unauthorized access.
Interphone function: By pressing the PTT button on the camera, the camera can work like a walkie talkie and talk to other cameras anywhere in the world via 4G or Wifi connectivity.
Professional loudspeaker: Using 30 * 20mm runway-shaped speakers, it makes sound waves easier to focus and transmit, presenting sounds clearer and more natural, in high volume situations maintain souds clarity and transparency without distortion.
Rugged and Waterproof: With rugged design and IP67 waterproof, the camera stands up to the most extreme environments. The camera can survive drops & impact. It can also be used in the rain, dust and extreme temperatures.
System
- Operating System: Linux 4.4.94
- Boot Time: < 8s
- Language: Chinese/English
Video
- Video Input: 1x Built-in digital HD lens

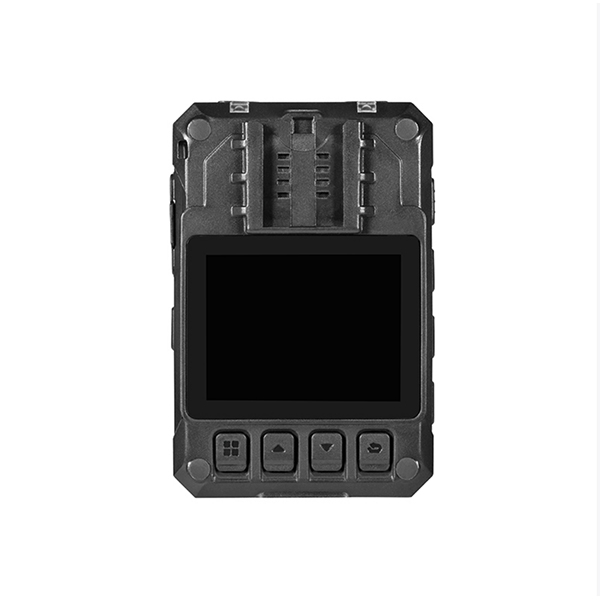

- Video Output: 2-inch Full HD LCD display (320x240)
- Recording Resolution: 30fps @(720p/1080p/1296p/1440p)
- Recording Mode: Synchronized audio and video recording
- Compression Standard: Video: H.264/H.265; Audio: AAC
Audio
- Audio Input: 1x microphone input
- External Audio Interface: 1x headphone jack
- Audio Recording: Supports standalone audio recording, WAV format
ImageProcessing & Storage
- Video Transmission Resolution: 720P (only supported on 4G/WiFi devices)
- Photo Resolution: 2M, 3.5M
- Snapshot: Supports snapshot during video recording (photo resolution matches video resolution)
- Data Storage: Built-in 32GB TF card (32~512GB optional)
AuxiliaryLight Source
- White Light: Auxiliary law enforcement lighting
- Laser Light: Assists in locking imaging center or laser marking (optional)
- IR Mode: Auto/manual IR light in low light conditions (clear target features at 10m)
IntercomFunction
- Group Intercom: Supports device-to-device group intercom (requires 4G support)
- Platform Intercom: Supports management platform to device intercom (requires 4G support)
Lens
- Lens Angle: 118° (HOV), 138° (FOV)
Alarm
- Alarm Input: Supports SOS button input, can report alarm signals to management platform
CommunicationInterface
- USB: Type-C, 1x USB2.0, for system upgrade, PC communication, charging, etc.
NetworkCommunication
- Protocols: TCP/IP, GB28181, Onvif, RTSP
- 4G: Optional, built-in 4G module (WCDMA/FDD-LTE/TDD-LTE)
- Wi-Fi: Optional, supports Client mode and AP mode (for video streaming or uploading to cloud server)
- Network Capture Box: Supports gigabit network capture box for direct cloud upload
GPS
- Global Positioning: Optional module supports BDS/GPS/GLONASS, records location and speed info
SoftwareInformation
- Text Overlay: Supports time, device ID, officer ID, location, speed overlay, Chinese supported
- Auto Overwrite: Supports auto overwrite/no overwrite
- Playback: Local video playback, file search by time/alarm
- Playback Speed: Supports 1~128x fast/slow playback
- Pre/Post Recording: Max 300s pre-recording + 300s post-recording
- Distortion Correction: Supports image distortion correction
- Security Mode: Basic operations only, password required for settings/playback
- Video Encryption: Supports encrypted video playback with specialized player
- Log: Records button operations, setting changes, recording status, alarms, etc.
SupportingSoftware
- PC Playback Analysis: PC video playback and data analysis
- CMSV6 Platform: Supports real-time preview/positioning/track playback/intercom/monitoring/remote commands
SoftwareUpgrade
- Maintenance: Supports USB or remote upgrade
WorkingEnvironment
- Temperature: -30--65℃
- Humidity: 40%~80%
Other
- Time: Supports network/PC/GPS time sync
- Factory Reset: Available
- Indicators: Charging, idle, recording, photo, audio recording
- Battery Capacity:
- Optional 3600mAh built-in non-removable battery, ~35h continuous 1080p30 recording, ~3h charging time
- Optional 4200mAh built-in non-removable battery, ~40h continuous 1080p30 recording, ~3.5h charging time
- Protection Rating: IP67
- Dimensions: 83.254.829.8mm
- Weight: ~146g (3600mAh battery) and 156g (4200mAh battery)
