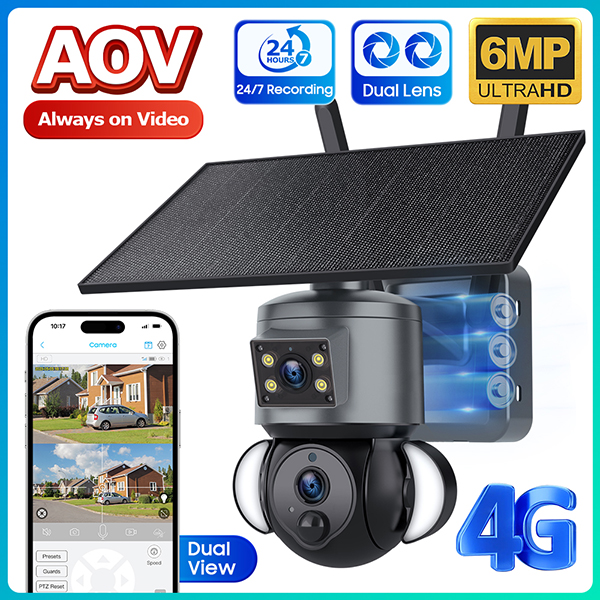

Basic Functions

•Uses T32VN high-performance processor for AOV low-frame-rate all-day recording

•Motion detection combined with dual PIR infrared sensors for more accurate activity triggering, suitable for various scenarios

•Dual image sensors paired with wide-angle + close-up dual lenses, providing wide and clear views

•10W monocrystalline solar panel for strong charging,12000mAh built-in large capacity lithium battery for long endurance

•Built-in microphone and speaker, supports two-way audio

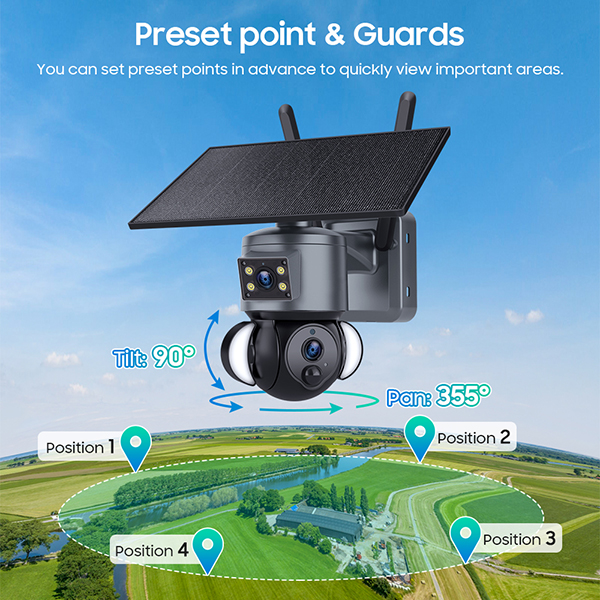

•Gun-Ball Linkage: After completing PTZ calibration in the APP, click any position in the gun camera video, the ball camera automatically moves to the corresponding position for detailed observation

•Supports cloud storage and local TF card storage

•APP supports Android/iOS, stable and reliable product

•Compact size, low shipping cost, IP66 outdoor waterproof rating

•Manually adjustable horizontal bracket for easy installation; 5M extension cable for easier expansion, suitable for various installation scenarios

•Supports multiple pairing methods (Bluetooth, QR code scan, sound wave) for easier setup

AI Features

Human Detection

 Enable to increase human detection, reduce false alarms

AI Tracking

 Automatically tracks human movement

Activity Zone Setup

 Define specific areas for detection

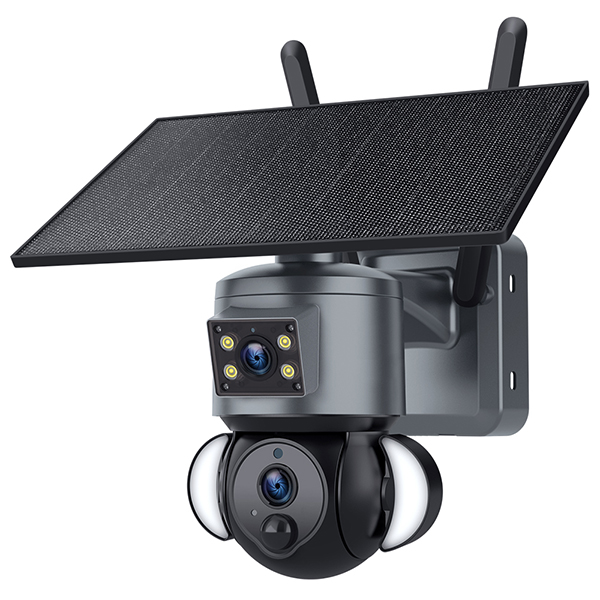

Product Name

AOV Solar Gun-Ball Linkage Camera

Model

AY-SCW2098-AOV

System

Main Control Chip

Ingenic T32VN

Operating System

Linux/RTOS

Video

 Image Sensor

Dual CMOS sensor, 1/2.9 inch

 Live Stream Preview

HD: 2304*1296 / 15fps; SD: 640*360 / 15fps

Video Compression Standard

H.264/H.265

Night Vision Mode

IR HD Night Vision (8 IR LEDs) / White Light Full Color Night Vision (10 White LEDs)

Lens

Gun Camera

2.8mm (Wide-angle lens)

 Ball Camera

4mm (Close-up lens)

Audio

 Audio Coding Standard

 AAC and G.726

 Audio Input

High sensitivity -38dB

 Audio Output

 External speaker

Two-Way Audio

Supports half-duplex / full-duplex communication

Fill Light Mode

 Smart Fill Light

IR fill light in AOV mode, white light fill light for alarm recording (Under optimization)

 Full Color Fill Light

White light fill light for both AOV and alarm recording

 IR Fill Light

IR fill light for both AOV and alarm recording

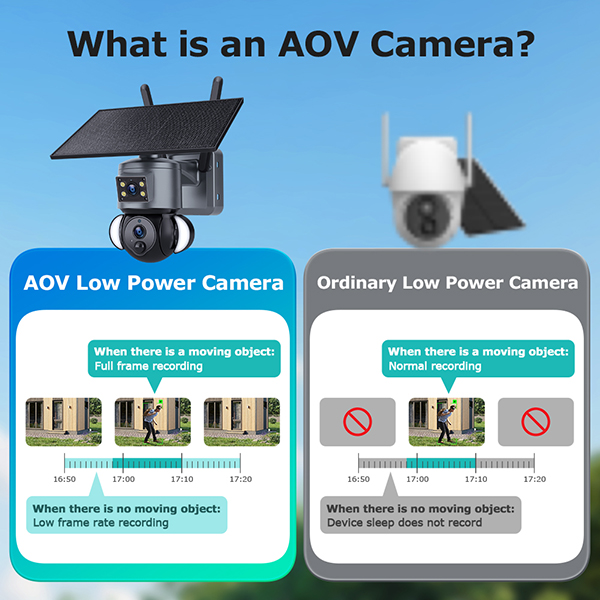

AOV Frame Rate (Configurable)

1, 1/2, 1/3, 1/5, 1/10, 1/20, 1/30, 1/60 fps (Image capture interval in AOV sleep mode)

Network

Network Module

Custom low-power 4G module / 2.4G Wi-Fi module

 Network Protocols

TCP/IP，HTTP，TCP，UDP，DHCP，DNS，P2P

 Supported Regions

 Supports China, US, EU, AU, JP, and global versions

SIM

Nano SIM

PIR

 PIR Specification

 Dual probe, dual lens

 PIR Detection Distance

 10 meters, 5 levels adjustable

False Alarm Filtering

 Supports human shape filtering

Pairing Method

Pairing Methods

Supports Bluetooth pairing, QR code scan pairing, sound wave pairing

Recording Mode

 Event Recording

15fps recording

 Time-Lapse Recording

 Low frame rate recording (frame rate configurable)

Power Supply

Built-in Battery

 3 PCS 21700 baterries 12000 mA

 External Charging Power Source

5V2A

 Power Management

 Default: Below 20%, AOV turns off entering low-power mode (AOV stops), can be awakened by PIR and APP remote access

Value-Added Services

4G Data Service

7-day free unlimited data trial, requires top-up after 7 days

 Cloud Storage Service

 First device activation offers 1 month free cloud storage trial

Other

TF Card Storage

Supports TF Card 4GB - 128GB

 Waterproof Rating

IP66

 Indicator Lights

Device status indicator, charging indicator

Operating Environment

 Operating Temperature

-30℃ ~+60℃

 Operating Humidity

≤80%RH

APP

 APP Name: UboxPro
