Solar Light

Working Time

On light mode: 8-10H (on sun days)

Radar mode: 3-4days (on sun day)

Waterproof

IP66

Power

lnitial max 8- 10W, stable 300W

Voltage

Built-in charge and discharge circuit DC5V

Button

Button switch, automatically

Light Source

LED

Size

440*265*215mm

Carton Size

4pcs，55*46*45cm

With Alarm

No

Battery

Built in 15000mAh  baterries

Control Way

Button Switch,Remote Control,Light control,Radar

Material

Plastic

Working

-20-60°C

Bead Qty

180pcs

Bead Type

Led 2835 2.9-3.1v,0.2W 5700- 6500k

Solar Panel

16W

Charging Time

7-9hrs on sun days

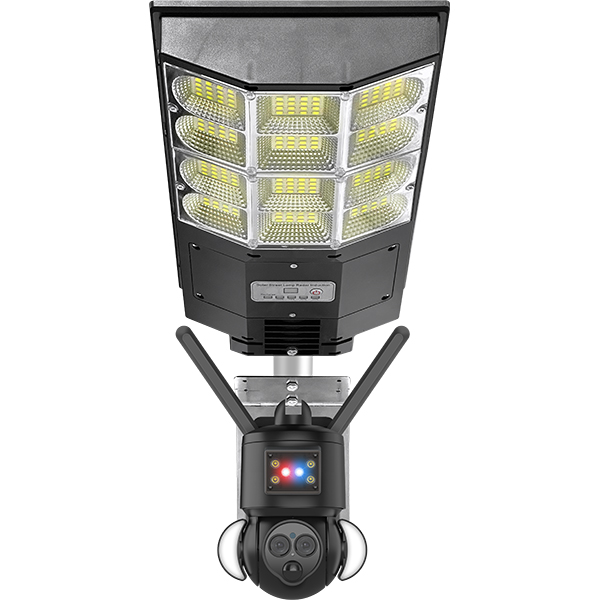

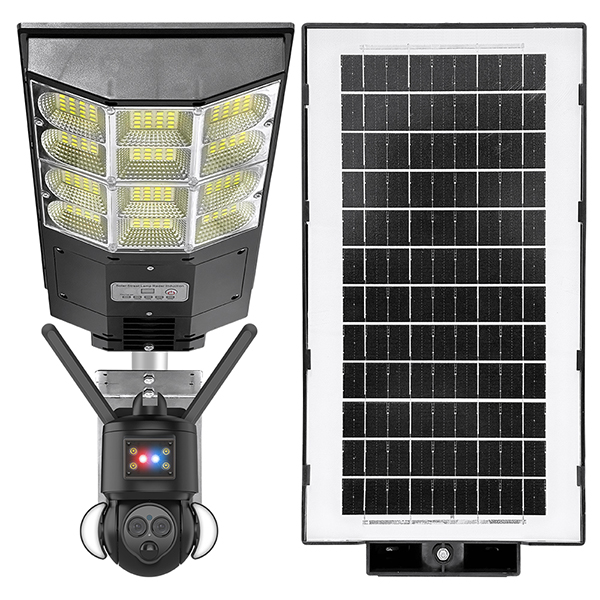

Solar Camera

Basic function

• Dual image sensors paired with 2 different focal length lenses for hybrid zoom
• 6W Monocrystalline silicon solar panel
12000MA built-in lithium battery(super battery life)
• Built-in microphone and speaker, support full-duplex voice intercom
• T40N high-performance processor
Realize human detection + human tracking (full-time recording)
• PIR alarm push, low false alarm rate
• Memory card(TF card)/cloud storage
• APP support Android/IOS
• Mini size(Low freight)，IP65 waterproof
• Easy to install，5M exten meters(Suitable for different application )

AI function (turn on full-time video recording)

Guard position

camera will return to the initial monitoring position after moving or tracking

preset point

16 preset points are available,each point can be directly viewed separately

Cruise

Add 2-4 preset positions as cruise points
The camera will cruise according to the sequence

Human detection

Turn on adding human traces
filter motion detection，low false alarm rate

Human checking

Auto human checking ,after human detection is turned on

Model No

AY-SLC8598-12x

Main parameters

Master chip

T40N

Sensor

2pc 1/2.9″ Image cmos Sensor

Video encoding

H264/H265

Video resolution

2304*1296 /15fps；  640*360/15fps

Audio encoding

AAC and G.726

Operating system

Linux

Network

4G LTE

Select the 4G network band according to the region

WIFI

2.4GH

Network Protocol

TCP/IP，HTTP，TCP，UDP，DHCP，DNS，P2P

Sim card

Nano SIM

Alarm mode

Detection method

PIR+Motion detection

Detection distance

5-7M

Detection angle

120°

Alarm method

App push

Night vision

Illumination

0.001LUX

Night vision mode

850nm IR night vision+white light color night vision

Mode control

APP ion

Lens

Close Focus HD Lens

f=4.0mm Horizontal FOV 80°

Far Focus HD Lens

f=12mm  Horizontal FOV 26°

Voice

Trumpet

Built-in high-volume waterproof speaker

Microphone

Built-in HD waterproof microphone

Pan/Tilt/Zoom

Angle

Horizontal 355°Vertical 90°

Storage

Cloud storage

Support(Value-added services)

Local storage

TF card（Max128G）

Video playback

Event list playback and cloud storage playback

Wake/Sleep Time

15S/30S/60S/no sleep

connection method

Scan the QR code

APP

UBOX

Power supply

Power supply mode

Batteries+ Solar energy

USB charge

Type-C (5V 2A)

Battery capacity

12000MA

Solar panel

6W

Other

Working environment

indoor/outdoor

Working temperature

 -20°~60°

Working humidity

≤80%RH
