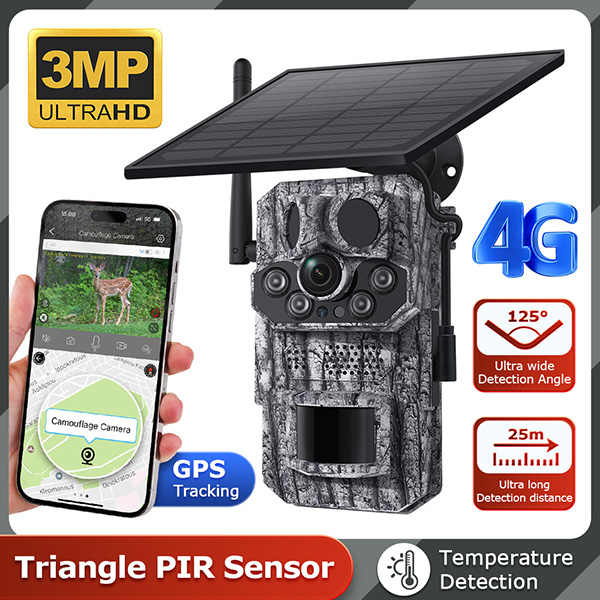

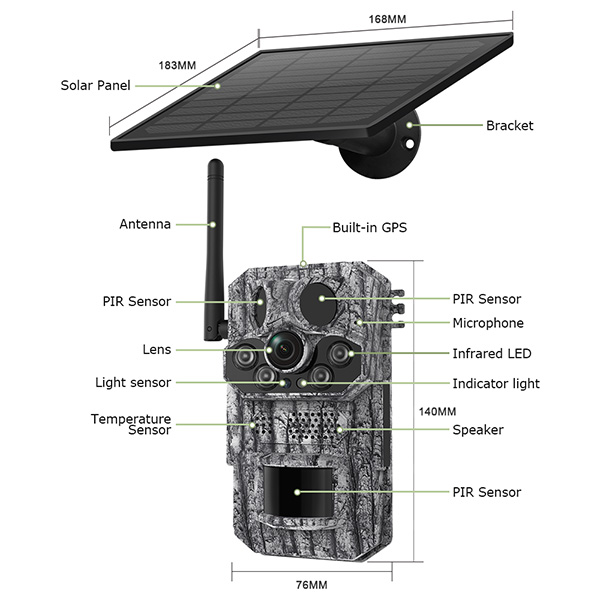

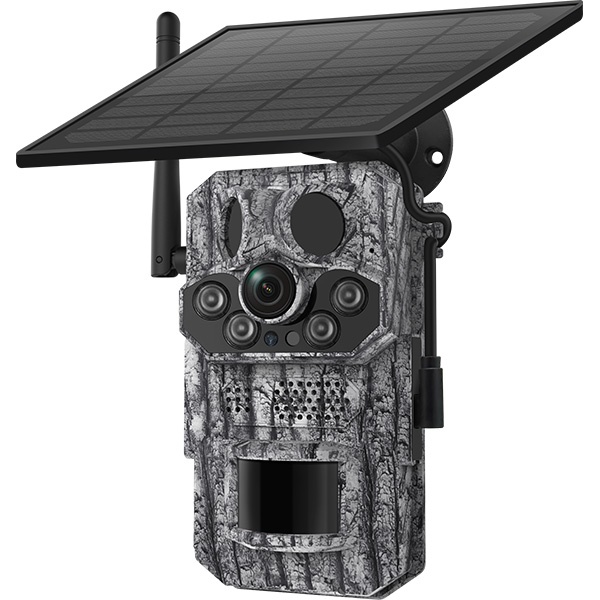

Unique Point: 3 PIR sensors optional built-in GPS 940 nm No-Glow Leds Camouflage Color Solar Battery Hunting Camera
Solar board 5W
Lens： 6mm
Standby time：About 1 months (wake up 30 times a day, 20S each time)
3 PIR sensors: the detection range is wider and farther to avoid blind spots; (125° wide angle and 25m long distance)
PIR human detection：Support PIR detection wake(Max 7M)
Built-in GPS: when the camera is on, you'll know its location at all time giving you an extra sensor of security;
Built-in temperature sensor;
Battery：built in 7800mAh
| Features |
• Use SP2316 black light sensor with 1.6 black light lens, to achieve full color night vision in low light environment |
|
| • 3 PIR lens design (wide-angle dual PIR + long-distance PIR); Provide longer detect distance and wider angle |
||
| • 5W monocrystalline silicon solar panel, 7800MA built-in lithium battery |
||
| • Built-in microphone and speaker, support two ways audio |
||
| • Built-in temperature detection module to detect the surrounding temperature in real time (optional) |
||
| • Built-in GPS module to achieve real-time positioning (optional) |
||
| • Support max local storage TF card 128GB and Cloud storage |
||
| • APP support Android/IOS |
||
| • Small size, low shipping cost, IP66 outdoor waterproof |
||
| • Support Bluetooth connection, simpler operation |
||
| • Use 940nm infrared night vision, infrared is invisible |
||
| • 5DB 4G antenna, more stable signal |
||
| • Support animal AI recognition (cloud storage required) |
||
| Item Name |
Low power consumption hunting trail solar camera |
|
| Model No |
AY-SHM8098-4GE |
|
| Chipset |
T41ZL |
|
| Image sensor |
3MP COMS sensor 1/3 |
|
| Pixel |
2304 X 1296/15fps 640 X 360/15fps |
|
| Motion detection |
PIR+ motion detection, Distance 20-25 meters |
|
| Trigger speed |
< 0.5s |
|
| Night Vision Mode |
4pcs 940nm ir light |
|
| IR distance |
About 20Meters |
|
| 4G module |
ASR chip customized low power consumption module |
|
| Len |
Custom black light lens, horizontal FOV 60 degrees |
|
| Battery |
3pcs 18650battery ,Total capacity is 7800mAh |
|
| wake |
One-way/two-way dual mode |
|
| Connecttion |
QR code & Bluetooth |
|
| System |
Linux + Rtos |
|
| Audio frequency |
Audio encoding |
AAC and G.726 |
| MIC |
High sensitivity -38dB |
|
| Video frequency |
Video compression |
H264/H265 |
| Network |
4G |
EU,US(optional) |
| Network Protocol |
TCP/IP，HTTP，TCP，UDP，DHCP，DNS，P2P |
|
| SIM card |
Nano SIM |
|
| Functions |
Event Alarm |
Support |
| GPS Positioning |
Optional |
|
| Temperature detection |
Optional |
|
| Button |
Power button / Reset button |
|
| Storage |
Support TF Card (up to 128GB) and cloud storage |
|
| Playback |
Event list playback and cloud storage playback |
|
| Waterproof grade |
IP66 |
|
| Two ways audio |
Support |
|
| APP |
Ucon，ios10.0，android5.0 |
|
| Working environment |
Operating temperature |
‘-30℃ ~+60℃ |
| Working humidity |
≤80%RH |
|
