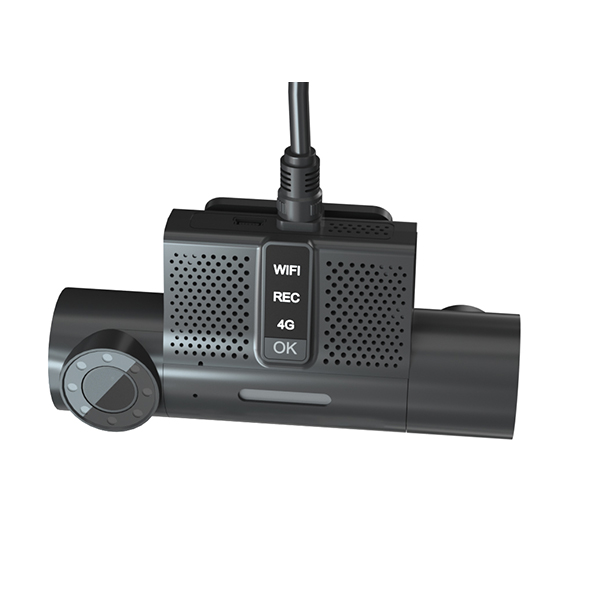

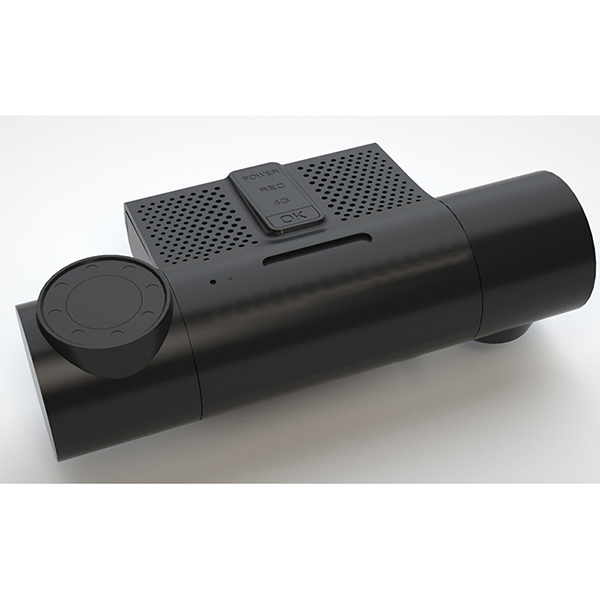

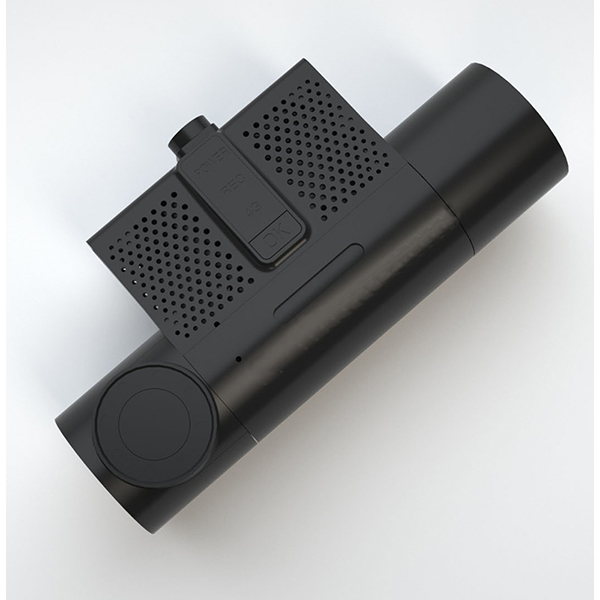

MiniHD professional driving recorder
2CH1080P HD video recording, 1CH audio recording and intercom
GPS/BD+AGPSpositioning, 4G remote transmission
Emergencyalarm, intelligent voice control, WIFI hotspot, OTA upgrade, etc.
Suitablefor online car-hailing, taxi, truck, etc.
Features and Functions
1. 2ch 1080P AHD video input, supports front and in-vehicle video recording, in-vehicle camera adopts wide-angle lens for full view of truck cabin, or car inside!
2. Angle of each len can be adjusted vertically, make sure the best monitoring view.
3. High quality IR of in-car camera for night vision recording.
4. Integrated high-sensitivity MIC, support 1 channel audio recording.
5. Integrated speaker, support voice broadcasting.
6. Integrated 3 status indicators to observe the working status of the device.
7. Integrated 1 SOS/Update button, support alarm button for emergency alarm and capturing pictures.
8. Integrated GPS module, realize management of speed, location, time and routine, etc.
9. Supports alarms of driving line departure and alarms of area entry and exit, the device can save up to 16 lines and areas.
10. Integrated 3/4G communication module, can realize remote monitoring and management.
11. Integrated WIFI module. WIFI supports hotspot function (AP mode supports up to 8 devices to share the Internet). Support configuration and debugging through APP when connecting device WIFI hotspot.
12. Built-in G-SENSOR module, which can realize automatic alarm upload of abnormal vibration, rollover, impact and sudden brake.
13. Ultra-low power consumption design; support 5V-30V adaptive wide voltage input, support reverse connection protection, overvoltage, overcurrent, and overload protection.
14. Support single TF card storage, single card maximum support 256GB. Support hot swap, support TF card upgrade.
15. 1 Micro USB interface, which can be connected to an external digital camera or used to backup data/equipment upgrade.
16. 2 alarm inputs, 1 alarm output. ICH RS232 or RS485 optional to extend other peripheral.
17. Support TTS function, can realize English TTS broadcast; support voice control, can directly control equipment capture and video functions through voice.
18. Ultra-low power consumption in sleep mode for GPS tracking.

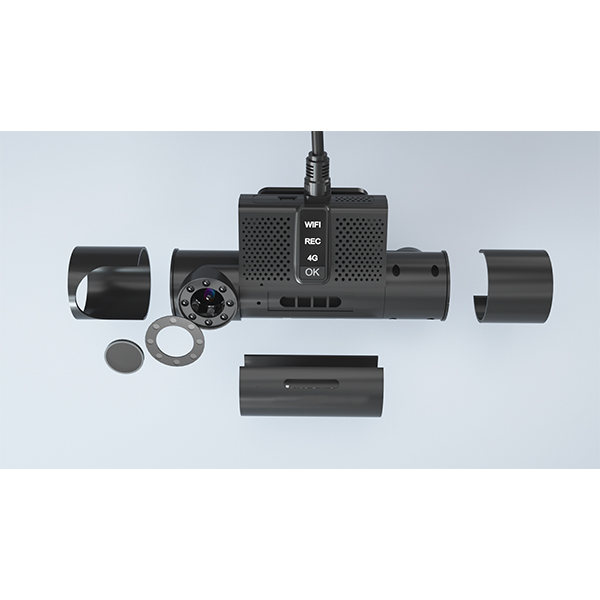

19. All-in-one plug and play MDVR, wireless including antennas built-in. Easy and quick installation with 3M sticker to windshield.
20. Mini size ABS& METAL industrial design ensures the stable operation of itself and the peripheral electronic equipment. It can realize continuous monitoring under the environment of -30°C~70°.
21. Free platform software, mobile App, web, client App, for professional and effective fleet managment.
Specifications
Basic Parameter |
Main chip |
Dual-core A53 1.3G |
OS |
Linux |
|
Network type |
1) FDD-LET; 2) TDD-LTE; 3) WCDMA |
|
RAM |
256MB+512MB |
|
Front cam |
GC2053/C2399 1080P, with angle 130 degree |
|
In-car cam |
GC2053/C2399 1080P,with angle 130 degree |
|
Hardware Function |
Positioning |
Support, GPS+BDS+AGPS |
WiFi |
2.4G, 802.11b/g/n |
|
Speaker |
8Ω, 1W, with audio cavity |
|
Microphone |
Single microphone, support echo and noise elimination |
|
G-Sensor |
3-axis acceleration sensor |
|
Loop denoising |
Compatible with hardware loop denoising |
|
RF Specification |
TDD-LTE |
B38/B39/B40/B41 |
FDD-LTE |
B1/B3/B8 |
|
WCDMA |
B1 |
|
Interface |
USB |
Mini USB*1, support local upgrade or data backup, expandable external digital camera |
8 Pin thinner din connector |
3Pin DC/ 2Pin I/O / 1Pin SOS |
|
SIM card slot |
SIM card slot*1 (MICRO SIM) |
|
TF card slot |
TF card slot (For recording video) |
|
Button |
Button |
1 upgrade button, long press to upgrade |
Indicator light |
3 |
|
Alarm button function |
SOS |
|
Antenna |
GPS antenna |
Built-in |
4G antenna |
Built-in |
|
WIFI antenna |
Built-in |
|
Shut Down Mode |
ACC delay |
Power down 8 sec after turn off the car |
Ultra low power sleep mode |
Set to the anti-theft monitoring mode in the device, after the vehicle is turned off, the system enters the anti-theft mode; in the anti-theft mode, if the device is shaken, it will automatically wake up and automatically take pictures and upload the mobile app to notify the car owner; in the anti-theft mode, it can realize remote real-time live broadcast and capture photos. |
|
Low-power time-lapse mode |
If the time-lapse video function is turned on in the anti-theft mode, the system enters the time-lapse video mode after turning off the power, saving video files one frame per second; in this mode, when the device is shaken, it will automatically upload 7s before the vibration and 8s after the vibration. To the mobile app to notify the car owner and lock the current time-lapse video |
|
Intelligent Voice Control |
Common local voice commands |
Support common local wake-up-free voice commands. Vioce commands: I want to take photos/upload video/ video upload/ turn on/off dongle, turn on/off recording, format memory card |
Voice-activated snapshot and upload |
When receiving the voice command "I want to take a photo/upload a photo", take a real-time capture of the photo of the recorder camera and upload it to the cloud, store it in the web album, and view and share it in the mobile APP at any time |
|
Voice-activated recording and upload |
When receiving the voice command "upload video/video upload/streaming media upload", upload the camera video of the recorder 7s before and 7s after the voice command is received to the cloud, store in the web album, and be available in the mobile APP at any time View and share |
|
Voice-activated lock video |
When the voice command "lock video/video lock" is received, the video file currently being recorded (main stream) is locked locally in the recorder |
|
Power |
Power input |
5-30V wide voltage input |
Working current |
≤0.5A@12V |
|
Sleep mode |
60mA@12V |
|
Anti-theft mode |
≤5mA@ 12V@ anti-theft model；≤0.2mA@12V@ shutdown mode |
|
Others |
Working temperature |
-30℃-70℃ |
Storage temperature |
-40℃-85℃ |
|
Size and weight |
|
