Basic function

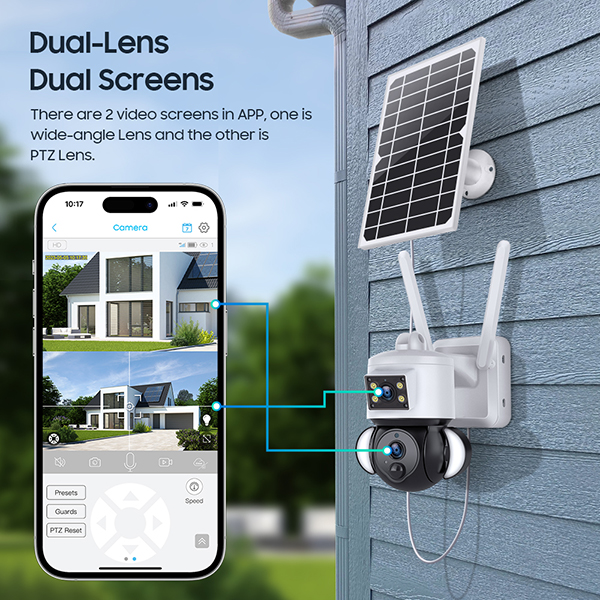

• Dual image sensors paired with an ultra-wide-angle sreen+Telephoto close-up dual lens （Wide viewing angle, clear view）

• 6W Monocrystalline silicon solar panel
12000MA built-in lithium battery(super battery life)

• Built-in microphone and speaker, support full-duplex voice intercom

• T40N high-performance processor
Realize human detection + human tracking (active preview+full-time recording)

• PIR alarm push, lower false alarm rate

• Storage(TF card)/cloud storage

• APP support Android/IOS

• Mini size(Lower freight)，IP66 waterproof

• Easy to install，5M extend meters(Suitable for different application )

AI function (turn on full-time  recording)

Guard position

Camera will return to the initial monitoring position after moving or tracking

Preset point

16 preset points are available,each point can be directly viewed separately

Cruise

Add 2-4 preset positions as cruise points
The camera will cruise according to the sequence

Human detection

Turn on human detection
filter motion detection，low false alarm rate

Human checking

Auto human checking after human detection is turned on

Item name

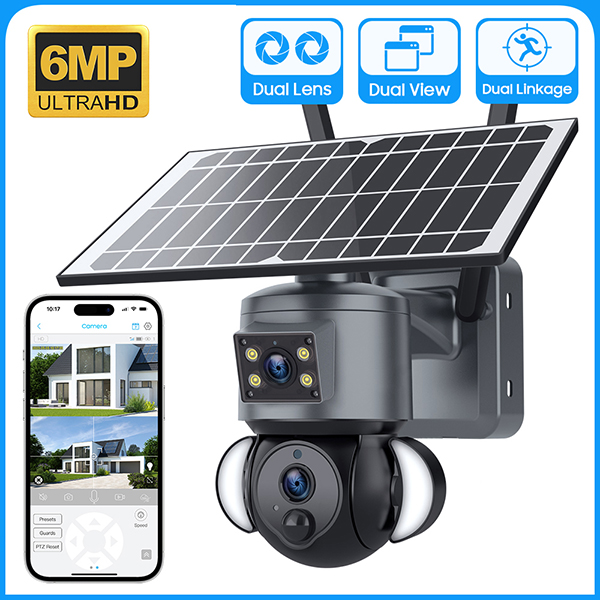

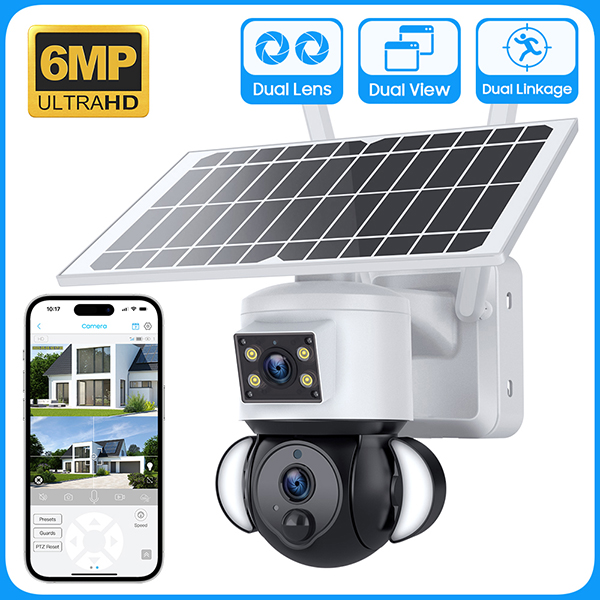

Double screen viewing solar camera

Model No

AY-SCW2098-4G

Main parameters

Master chip

T40N

Sensor

2pcs1/2.9″ Image cmos Sensor

Video encoding

H264/H265

Video resolution

1920*1080 /15fps；  640*360/15fps

Audio encoding

AAC and G.726

Operating system

Linux

Network

4G LTE

Select the 4G network band according to the region

4G version

4G version is work with 4G sim card

Sim card

Nano SIM

Alarm mode

Detection method

PIR+Motion detection

Detection distance

5-8M

Detection angle

120°

Alarm method

App push

Night vision

Illumination

0.001LUX

Available night vision mode

IR night vision(max 20meters )+white light color night vision(max 20 meters)

Mode control

APP ion

Lens

Flood light

2 sets of high-power lights, 800 lumens, with a lighting radius of 5 meters

Bullet case- Wide Angle Lens

f=2.8mm Horizontal FOV 105°

Dome case-Telephoto Lens

f=8mm  Horizontal FOV 43°

Voice

Trumpet

Built-in high-volume waterproof speaker

Microphone

Built-in HD waterproof microphone

Pan/Tilt/Zoom

Angle

Horizontal 340°Vertical 90°

Storage

Cloud storage

Support(Value-added services)

Local storage

TF card（Max128G）

Video playback

Event list playback and cloud storage playback

Wake/Sleep Time

5 modes optional:Immediate dormancy/15S/30S/60S/no sleep

Connection method

Scan the QR code

APP

UBOX

Power supply

Power supply mode

Batteries+ solar energy

USB charge

type-c (5V 2A)

Battery capacity

built in 3 PCS 21700 baterries 12000 mA

Solar panel

6W

Other

Working application

indoor/outdoor

Working temperature

 -20°~60°

Working humidity

≤80%RH
