Solar 4G Camera Home>Products>Solar 4G Camera

AY-SCW2198

Product Category:

Solar 4G Camera

Product Figure:

  • Features
  • Technical parameters
  • Product Application

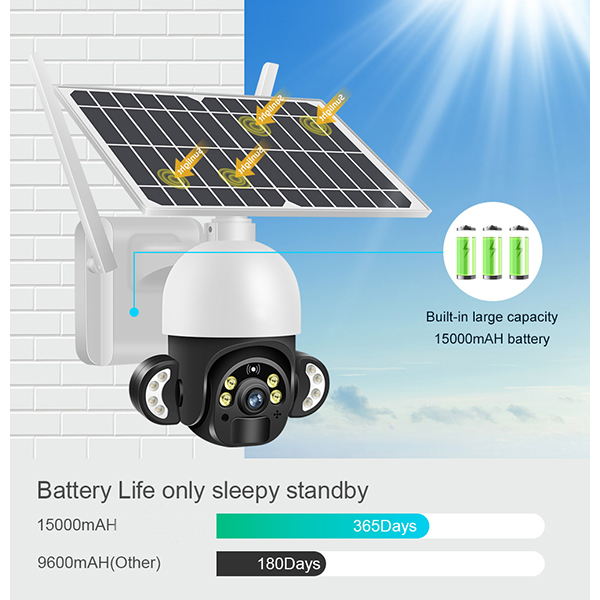

l Solar panel universal adjustment, built-insuper capacity battery

l Ultra-low power standby, quick wake up in 0.2seconds

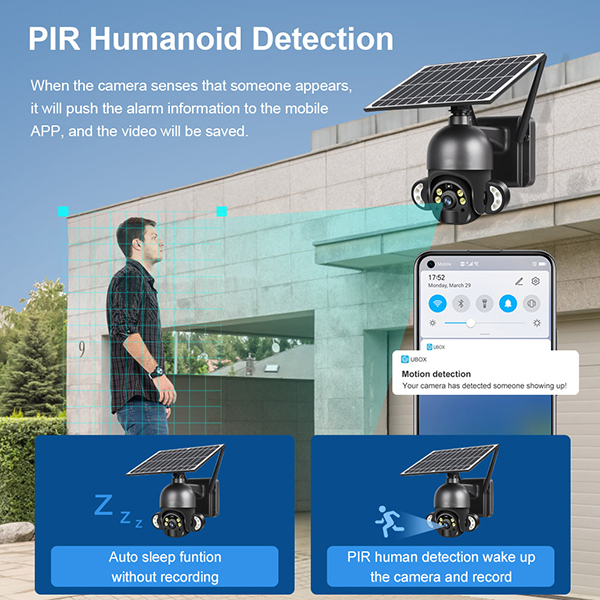

l PIR sensor + radar dual alarm detection

l High-performance ISP and 1/2.7"progressive sensor, blacklight full color

l 2560*1440 2K video

l Built-in microphone and loudspeaker, supporttwo way audio

l Support Cloud storage and local storage

l APP support Android/IOS

l IP65 waterproof

l Support All-in-One installation and separatedinstallation

Model No.

AY-SCW2198

General

Main processor

Ingenic-T31ZX

APP Operation System

Android, IOS

Image Senor

1/2.7″ Image Sensor

Compression

H.264+/H.265

Resolution

2560*1440 2K

Internet Connection

4G

TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD

4G Version

CN/ AU/ EU/ JP/ US/ ASEAN (Optional)

Alarm

Detection Mode

PIR + Radar dual detection

Detection Distance

0~12M

Detect Angle

95°

Alarm Mode

Realtime calling or push message

PTZ

PTZ Angle

Horizontal 355 ° Vertica 100°

Speed

Horizontal 55 °/S Vertical 40°/S

Night Vision

Full color night vision

0.00001 Lux

IR LED

infrared LED 15M IR distance

White light LED

white light LED 20M distance

 Audio

Built-in speaker (input)

3W

Built-in microphone (output)

voice monitoring distance 20M

Lens

Lens

3.6mm

Lens Angle

95°

Storage

Cloud Storage

storage when alarm recording

Local Storage

TF Card Max 128G

Power

Power Supply Mode

Solar Panel+ Build in Batteries

Panel Material

monocrystalline silicon

Solar Energy Power

6W

Battery Capacity

Support 15000mAh Super battery

Operating power consumption

4W

Standby consumption

0.003W

Others

Working Environment

Indoor/outdoor

Operation Temperature

-30°~+60°

Humidity

0%~90%RH

Package

N.W.

1.68KG/PC

Giftbox size

253*185*152mm

Quantity in carton

9pcs

G.W.

575*265*470mm

Carton size

15.74kg
