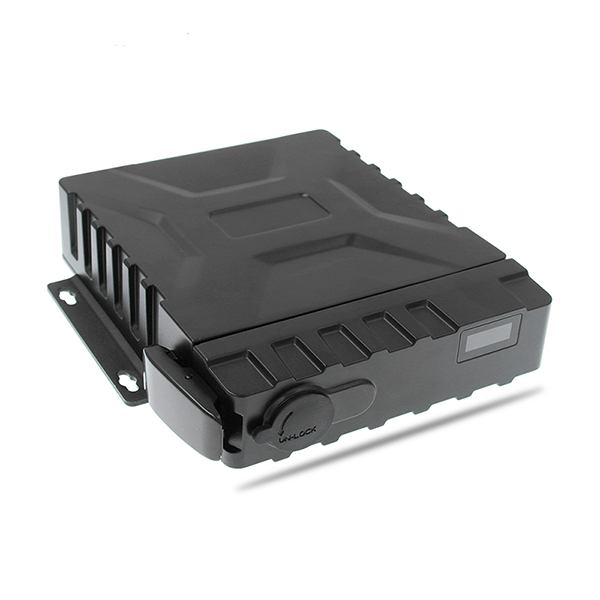

Product Specification

Model

AY-MRD8004AHD

System

Language

English  / Chinese

Operation Interface

Graphical User Interface（OSD menu）

Password Security

2 Levels: Administrator & User

Video

Video Input

A:Supports 4 channels CIF/HD1/D1/960H camera Video input

B:Supports 4 channels 720P AHD camera Video input

C:Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input

D:Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input

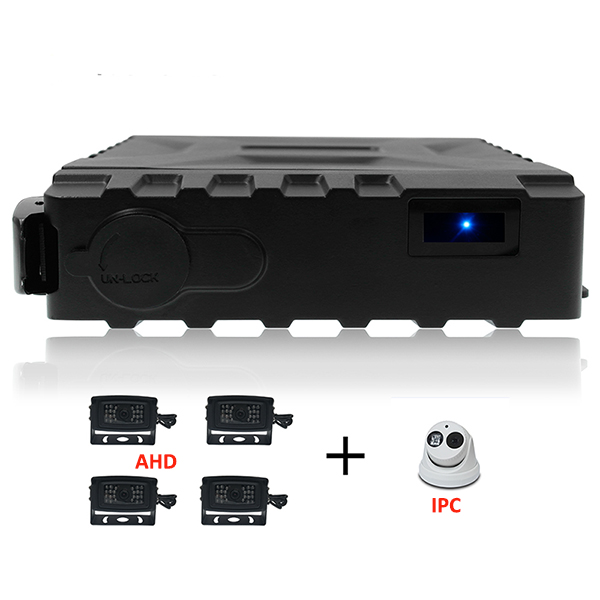

E:Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD Video input

Video Output

1 Channels (Rear Panel on RJ45&AV-OUT Port)

Video Display

Single picture, 1~5 pictures

Signal System

PAL / NTSC ( PAL@125 frame 720P/sec; NTSC@150 frame 720P/sec )

Image Compression

Audio

Audio Input

4 Channels

Audio Output

1 Channels

Record Format

Synchronized A/V recording

Recording & Storage

Image Resolution

CIF / HD1 / D1 / 960H / 720P / 1080P optional

Video Coding

ISO14496-10 Industry Standard

Video Bit Rate

CIF: 1536Kbps ~ 128Kbps,

HD1/D1: 2048Kbps ~ 400Kbps,

960H:  2048Kbps ~ 400Kbps,

720P: 4096Kbps ~ 400Kbps

1080P:4096Kbps ~ 400Kbps

Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)

Audio Bit Rate

40Kbps

Storage

1 SSD and 1 SD card （at 3G/4G/WIFI model option）

Alarm

Alarm Input

4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC

Alarm Output

2 Channel, 12V output

Communication Ports

RS485

1 Port for PTZ control or Data Device usage

RS232

1 Port for communication or data usage

RJ45 Network

1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P

USB

1 Ports for USB 2.0, download video files & upgrade firmware

Wireless Communication*

3G/4G*

Supported

Wi-Fi*

Internal Wi-Fi 802.11b/g/n/ac optional

GPS*

Int'l Standard GPS

Internal GPS module. Real-time geographic coordinates, speed information

G-Sensor

Internal G-Sensor

Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates

Software

PC Playback

A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR

IVMS

Wireless  (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.

Software Upgrade

Local or Remotely

Upgrade through the front USB2.0 or remotely via IVMS platform

Voltage Input

+8V~+36V

8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage

Voltage Output

12V

12V (+/-0.2V) , Max 3A

ACC Detection

≤4V

Power-off

≥6V

Power-on

Video Input Resistance

75Ω

75Ω

Video Output Voltage

2Vp-p

2VP-P CVBS output analog signal, screen input requires 75Ω resistance

I / O Port

<1V

Low voltage trigger

>5V

High voltage trigger

Operational Temperature

-25℃～80℃

Install  in well ventilated area, protected from moisture, heat, dust and vibration

Dimensions

146*155*38mm
