Car DVR Home>Products>Car DVR

AY-MDC504K

Product Category:

Car DVR

Product Figure:

  • Features
  • Technical parameters
  • Product Application
* 1 Channel: 4K@30fps
Dual camera: 2K+1080P
* Chipset: NT96670
* Sensor: IMX415
* 150° wide angle lens
* 3.0" IPS screen
* Audio record
* G-Sensor
* WDR Technology
* Motion Detection
* Loop Recording
* Super capacitor
* Optional GPS
* Built-in WiFi
* 1080P Rear Camera

Specification

3.0" IPS Screen
Provide instant video playback and makes the device efficient for adjusting video output settings.

Video Resolution
Single Channel: 4K@30fps
Dual Channel: 2K@30fps + 1080P@30fps

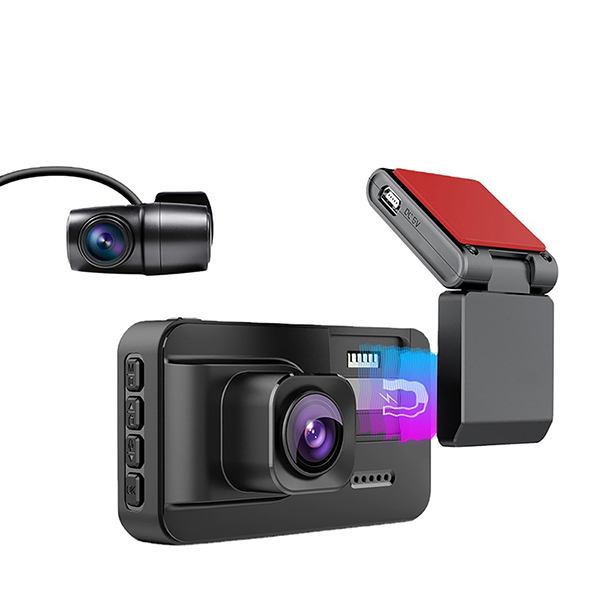

Coaxial cable rear camera
Super longer & faster distance supported and higher definition during transmission, and strong anti-interference ability as well.

Super Night Vision
Equipped with Sony IMX415 image sensor(front cam) and SC2231 image sensor(rear cam), 6-layer Glass lens, F1.8 Aperture and WDR
greatly enhance night vision at low light environment.

170°+150° ultra wide view
170° field of view(front cam) and 150° field of view(rear cam) enables full road ahead and back of your vehicle.

Built-in WiFi
Connect the dash cam with your smartphone by WiFi, then control the camera and view real-time videos/photos on the APP (available
for both iOS&Android), download the moments and share with friends.

Built-in GPS
The video will be recorded with driving route, speed, date and time, which can then be viewed on PC by supplied ANYUAN playback software.

Support MicroSD 256GB max
MicroSD card required(not included). Use a 128GB(max) Class 10 above MicroSD card formatted in dash camera for reliable
performance.

G-Sensor
In the event of an impact the device will automatically protect the recording stopping the file from being over-written,
individual files can also be "protected" when viewed within playback mode.

WDR Technology
Wide Dynamic Range technology compensates for light/dark spots and balances exposure.

Voice Record
Built-in microphone & speaker to capture high quality audio clear without distortion. Don't want to record voice? Just one press
to turn the microphone off.

Loop Recording
Auto starts up and records automatically when the ignition sparks up, loop recording saves the latest vidoes and overwrites the
oldest videos when memory card is full. Supports up to 128GB card max, please format it on the dashcam before use.

Auto LCD OFF
Support auto LCD off timer which enables the LCD off automatically after the recording begins so you won't be disturbed by another
glowing rectangle on your windshield, you can also turn this function off if you prefer the LCD stays on.

Extreme Temperature Resistance
Built-in super capacitor performs more resistant of high/low temperature and longer lifetime than standard battery

Model

AY-MDC504K

Chipset

NT96670

Sensor (Front)

Sony Starvis IMX415 8.0MP

Video Resolution (Front)

4K 30fps

Lens (Front)

150° / 6G / F1.8 Apeture

Sensor (Rear)

sc 2208

Video Resolution (Rear)

1080P 30fps

Lens (Rear)

120° / 4G / F2.0 Apeture

Lens Rotatable

X

Infrared Lights

X

LCD Screen

3.0" IPS

Touch Panel

X

Video Format

MP4

Max. Memory Card

Micro SD 256GB

Audio Record

Yes

Auto Start/Stop Recording

Yes

Seamless Loop Recording

Yes

G-Sensor File Protection

Yes

Wide Dynamic Range WDR

Yes

Motion Detection

Yes

Parking Mode

Time Lapse Recording

GPS

Optional

WiFi

YES

APP

U CAM

Lane Departure Warning System LDWS

X

Front Collision Warning System FCWS

X

Language

Multiple languages

Built-in Battery

X

Super Capacitor

2.7V / 7F

Voltage

Input: 12-24V  Output: 5V 2A

Operating Temperature

-20~ 60

Storage Temperature

-25~ 70

Product Size

75*60*40MM

Product Weight

83g
