AY-MRD9608AHD

Product Category:

Mobile DVR

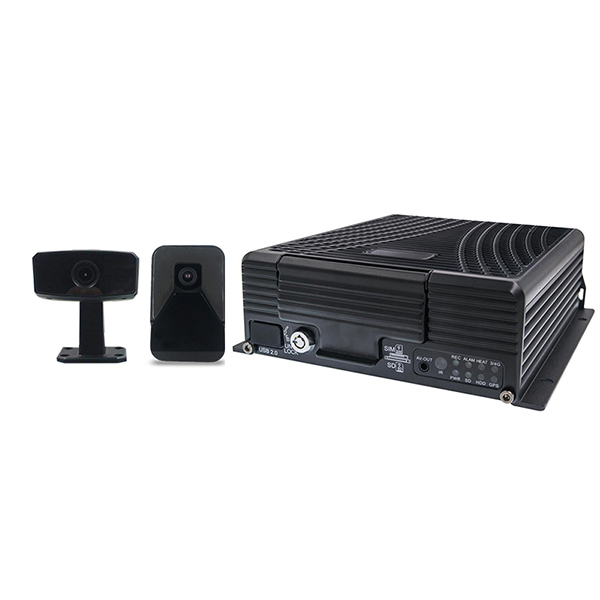

Product Figure:

  • Features
  • Technical parameters
  • Product Application

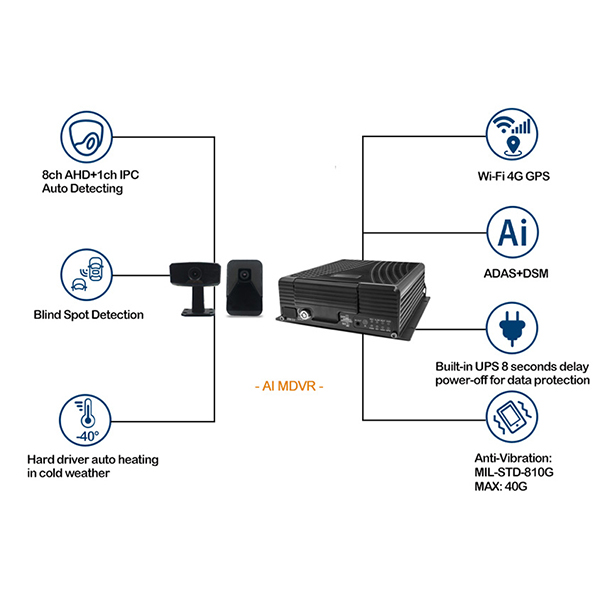

§  Auto detecting & matching for all analog cameras

§  Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 6 channels 1080P AHD  / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

§  Option2: 8 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

§  Support ADAS+DSM (optional)

§  Support Blind Spot Detection cameras (optional)

§  Accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 256GB) for backupat 4G/Wi-Fi model option

§  Support GPS, 4G and Wi-Fi (5.8 Ghz)

§  Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering

§  WIFI  automatic download

§  Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)

§  Hard drive automatic heating startup in -40 weather

§  On board UPS 8 seconds delay power-off for data protection

§  Operating temperature -40 ~ +80

§  8V-36V wide voltage power supply

Function

AY-MRD9608AHD

System

Language

English   / Chinese

Operation Interface

Graphical   User InterfaceOSD menu

Password Security

2   Levels: Administrator & User

AI

DSM

Yawning   Detection

Eyes Closing Detection

Smoking Detection

Making Phone Calls Detection

Distraction Detection

Driver Absence Detection

Camera Covered Detection

Wearing Glasses Detection

ADAS

Lane   Departure Warning

Safe Distance Warning

Froward Collision Warning

Pedestrian Collision Warning

BSDOptional

Support  Blind Spot Detection cameras (2 channels)

Video

Video   Input

Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 6 channels 1080P AHD  / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

Option2: 8 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

Note: (8x15 fps)  8-CH 1080P AHD + 1-CH 720P/1080P IPC Video input

 (8x15 fps)  8-CH 1080P AHD camera Video input

Video Output

3 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port & VGA 1080P)

Video Display

Single  picture, 1~9 pictures

Signal System

PAL / NTSC ( PAL@120 frame 1080P/sec; NTSC@120 frame 1080P/sec )

Audio

Audio   Input

8 Channels

Audio Output

2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)

Record Format

Synchronized  A/V recording

Recording & Storage

Image   Resolution

CIF   / HD1 / D1 / 960H / 720P /1080Poptional

Video Coding

ISO14496-10 Industry Standard

Video Bit Rate

CIF:   1536Kbps ~ 128Kbps,

HD1/D1: 2048Kbps ~ 400Kbps,

960H: 2048Kbps ~ 400Kbps,

720P:4096Kbps ~ 400Kbps

1080P:4096Kbps ~ 400Kbps

Select from 8 Levels of Video Image Quality   ranging from 1(Highest) to 8(Lowest)

Audio Bit Rate

40Kbps

Storage

Up  to 2TB HDD/SSD and 1 SD card for backupat 3G/4G/WIFI model option

Alarm

Alarm   Input

8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC

Alarm Output

1 Channel, 12V output

Communication Ports

RS485

1 Port for PTZ control or Data Device usage

RS232

2 Ports for communication or data usage

RJ45 Network

1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P

Speed

1 ChannelOptional, shared with   the port IO /IN 8)

CAN

1 ChannelOptional, shared with   the port IO /IN 6/7)

USB

2 ports. The front one is USB 2.0 to download video files & upgrade firmware; The rear panel one is USB 2.0 for optional.

Wireless Communication*

3G/4G*

Supported

Wi-Fi*

Internal Wi-Fi 802.11b/g/n/ac optional

GPS*

Int'l   Standard GPS

Internal GPS module. Real-time geographic coordinates, speed information

G-Sensor + Gyroscope

Internal   G-Sensor + Gyroscope

Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect   crash, harsh breaking, acceleration and cornering.

Software

PC   Playback

A/V, GPS,   Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited   playback is also available on MDVR

IVMS

Wireless   (require Wi-Fi or cellular Option)    real-time A/V monitoring, GPS, alarms, etc.

Software Upgrade

Local or Remotely

Upgrade through   the front USB2.0 or remotely via IVMS platform

Voltage Input

+8+36V

836VDC Please check operational voltage of   vehicle prior to the installation of the MDVR and its accessories to prevent   possible damage

Voltage Output

12V

12V+/-0.2V),Max 3A

ACC Detection

≤4V

Power-off

≥6V

Power-on

Video Input Resistance

75Ω

75Ω

Video Output Voltage

2Vp-p

2VP-P   CVBS output analog signal, screen input requires 75Ω resistance

I / O Port

<1V

Low   voltage trigger

>5V

High   voltage trigger

Operational Temperature

-4080

Install   in well ventilated area, protected from moisture, heat, dust and vibration

Dimensions

192x184x61mm

Including   Security Cover 248x184x61mm

ADAS camera

Model

AY-CRD10

Image Sensor

1/2.9”   CMOS

TV System

PAL/NTSC

Horizontal Resolution

1080P

Lens optional

6mm

Effective Pixel Arrey

1920H   x 1080 V

Min illumination

0.001   Lux

Audio function

N/A

S/N Ratio

>80dB

WDR

D-WDR

IR &Infrared LED Range

N/A

Horizontal angle of view

60°

Tilt Adjusting

Support

Power Supply

DC   12V±5%,65mA±5mA

Dimensions

105*68*43mm

Net Weight

100g

Weatherproof/Water Proof

N/A

Operational  Temperature

-2575

Operational  humidity

90%

Video port

4PIN  Aircraft Round Connector Plug

DSM camera

Model

AY-CRD21

Image Sensor

1/3”   CMOS

TV System

PAL/NTSC

Horizontal Resolution

1080P

Lens optional

6mm

Effective Pixel Arrey

1920H   x 1080 V

Min illumination

0.001   Lux

Audio function

Support

Speaker

Support

S/N Ratio

>80dB

WDR

D-WDR

IR &Infrared LED Range

IR LED 3535*2 pcs

Horizontal angle of view

90°

Tilt Adjusting

Support

Power Supply

DC   12V±5%,65mA±5mA

Dimensions

80*86.5*37.5mm

Net Weight

150g

Weatherproof/Water Proof

N/A

Operational  Temperature

-2575

Operational  humidity

90%

Video port

10PIN   Aircraft Round Connector Plug

This Mobile DVR is ideal for large-scalefleet applications such as monitoring buses, coaches, car, taxis, lorries, firetrucks, ambulances, passenger vehicles, patrol cars, prison transportationvehicles and emergency response vehicles, etc. The DVR is equipped with ananti-shock vibration resistant chassis that is built to endure the rigorousbumps and turns of mobile surveillance applications, to ensure high qualityvideo on-the-go.

This remoteviewable Mobile DVR makes use of cellular 4G data networks and Wi-Fi hotspots,via a SIM card and Ethernet connections for remote monitoring of live audio andlive and recorded video. The DVR enables you to quickly determine GPS locationwith the Google maps interface, and offers camera control, while the built-in Wi-Ficlient provides convenient wireless offloading of video evidence to an optionalserver.

The AY-MRD9608AHD Operatedwith Client Software to realize fleet management online, and achieve a fullrange of car monitoring functions such as real time video & audiomonitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature,alarms customized , driving route record, PTZ control, fuel volume detection,video search and download, generating reports, etc. Mobile APP is available formobile phones in Android and iOS system.
