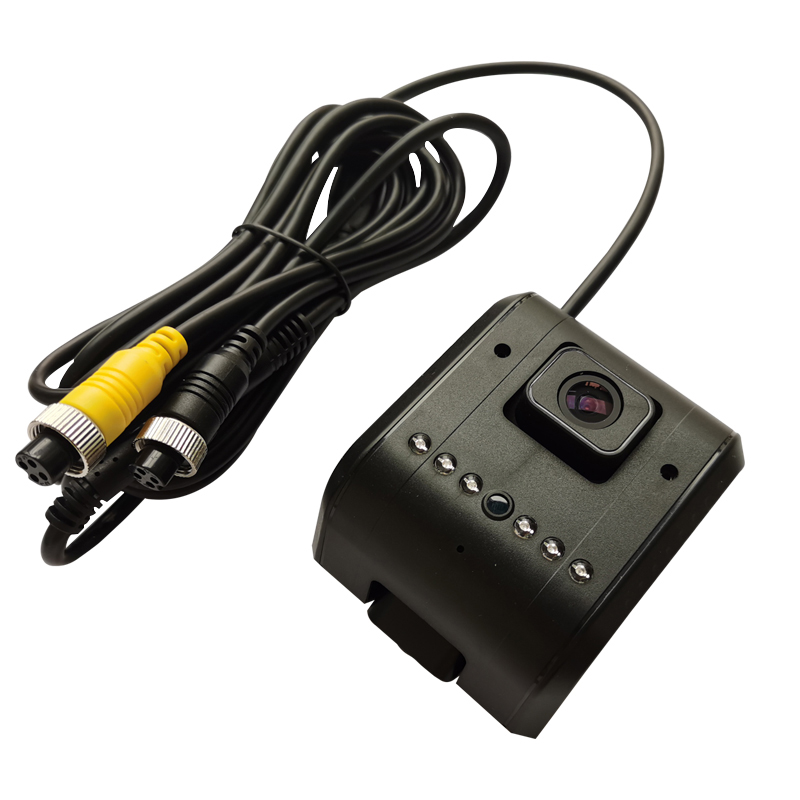

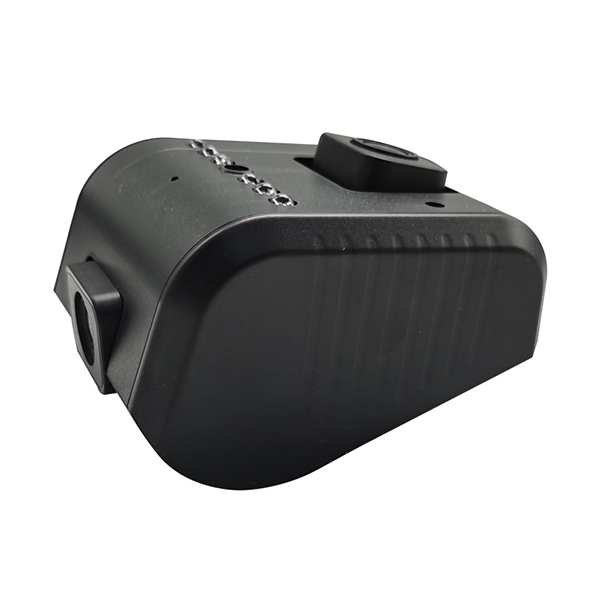

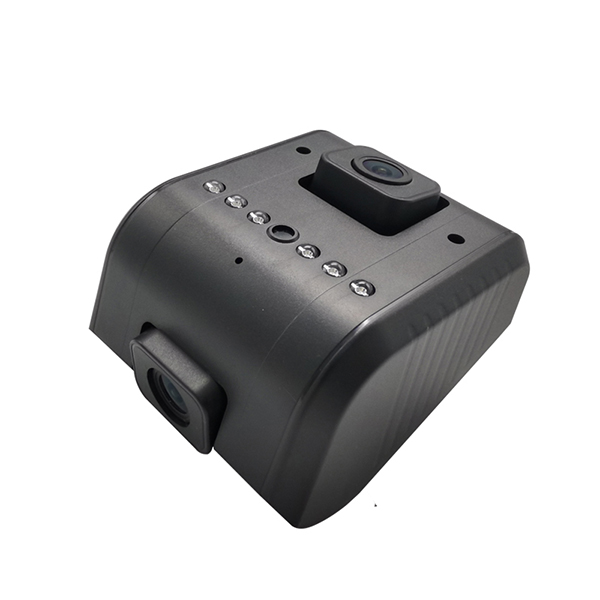

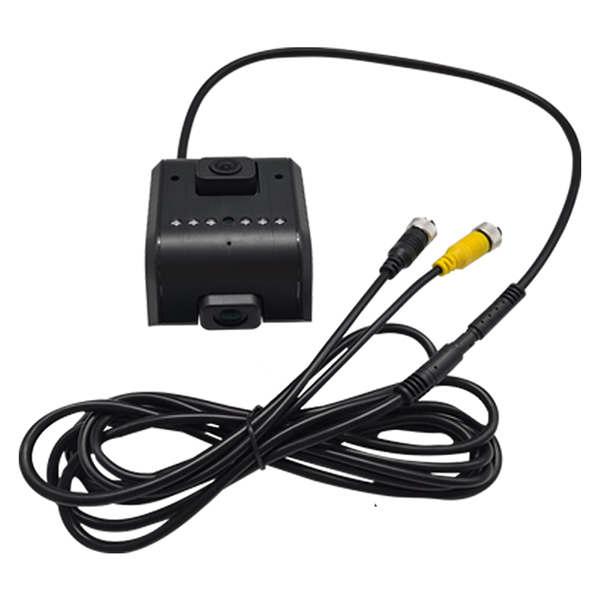

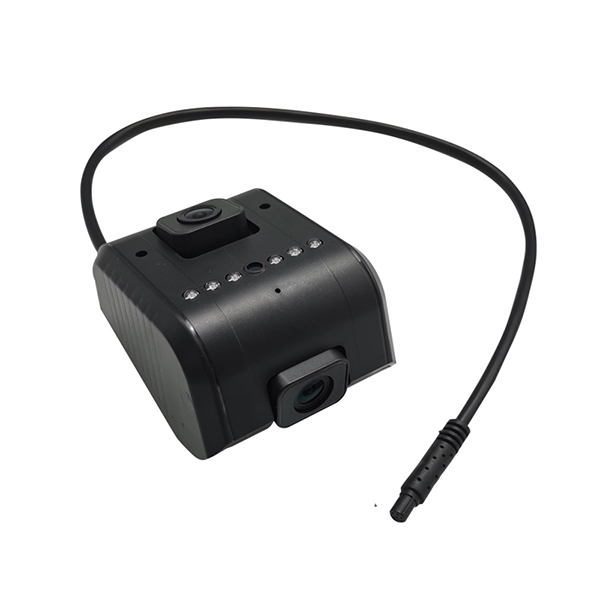

Dual camera 1.0MP 1.3MP 2.0MP 1080P Car Camera Night Vision Rear View Reverse Back Up Car Camera

-Specialized structure for vehicle: easy assembly and disassembly; lockable angle and anti-vibration;
-Adapt to volatile environments;
-Anti-jamming & low power design: avoid vehicle circuit interface; support high temperature on vehicle roof;
-Audio band-pass filter(optional): reduce vibration noise of vehicle engine and frame
-Good surveillance solutions for public bus, taxi, school bus, law enforcement, truck, coach, trains & trams.

★ built-in 2pcs 2M HD cameras
★3.6mm/2.8mm lens is optional
★ 6pcs IR LEDs, IR distance: 10m
★Built-in microphone
★with bracket
★Dimension: 127(W) x90(H) x37(D)mm
★weight: 300g
★ 4P aviation connector, BNC/RCA


 Image Device

 1/2.9" COLOR CMOS

 TV System

 25 frames / 30 frames

 Effective Pixels

 1920*1080 pixels

 Sensing Area

 2.9µm x 2.9µm

 Scanning System


 Sync. System




 Minimum Illumination

 0.01 Lux,0 Lux (with IR)



 Video Format


 Video Output


 Gamma Consumption




 S/N Ratio

 Better than 52dB

 White Balance


 Electronic Shutter

 Auto1/25 (PAL), 1/30 (NTSC) ~ 1-50000 Second



Waterproof Standard


 Current Consumption

 Max.280mA(DC12V,w/o heater or Max.550mA (DC12V, with heater

 Power Supply

 DC12V or DC10~32V

 Operation Temperature

 -20℃~+70, RH 95% Max.

 Storage Temperature

 -30℃~+80, RH 95% Max.


 2.8mm/3.6mm (depending on models)

 Lens Angle

 130°/110°(depending on models)
