4G Mirror Car DVR Home>Products>4G Mirror Car DVR

AY-MDC88

Product Category:

4G Mirror Car DVR

Product Figure:

  • Features
  • Technical parameters
  • Product Application

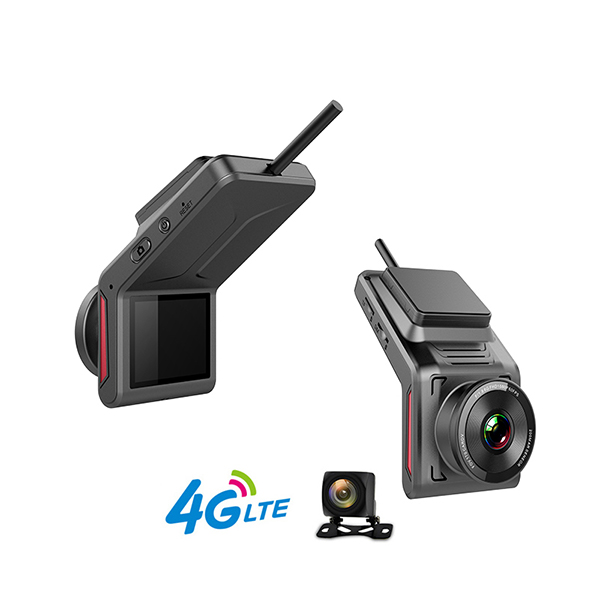

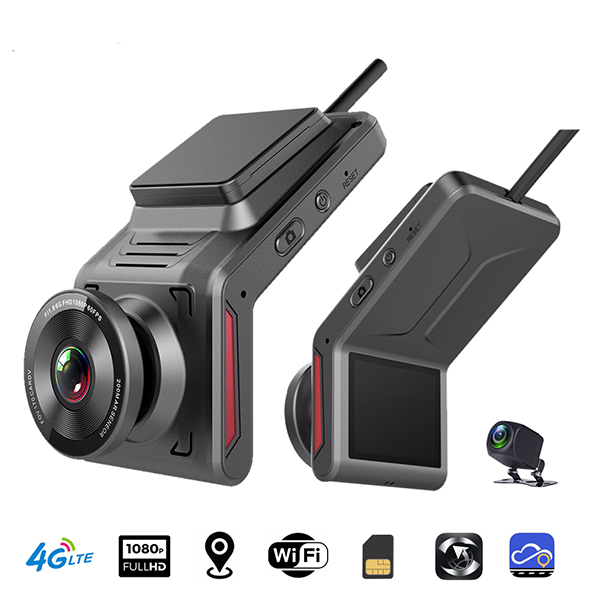

AY-MDC88 is one 4G Real-Time Video Monitor Solution for vehicle fleet, which  combine with dual lens,  GPS logger track , GPS location, WiFi,    Multiple functions in one-device.  Mobile APP /  CMSV6 video monitor platform optional
1.CPU:SL8521E, Cortex-A53, Dual Core, 1.3Ghz
2. RAM 512MB +ROM 256MB
3. OS:  Linux
4. GPS:GPS+Beidou, built in GPS antenna
5. 4G Network: 3G WCDMA:2100(B1); 4G FDD-LTE: B1/B3
6.WiFi : 802.11 b/g/n 2.4Ghz; support wifi hotspot
7. Front camera : 1080P , 4glass camera lens , 120 degree wide view
8. Back Camera: 720P
9. Support TF card, maximum 128GB(not included)
10. Remote video liveview

Product Parameter

Model number

AY-MDC88

Screen

2.0inch, 4line-SPI interface, resolution: 320*240

CPU

SL8521E, Cortex-A53, Dual Core, 1.3Ghz

Storage

RAM

512MB

ROM

256MB

GPS

GPS+Beidou, built in GPS antenna

OS

Linux

Software upgrade

Upgrade by TF card, OTA online upgrade.

WiFi

802.11 b/g/n 2.4Ghz; support wifi hotspot

Remote monitor

Support Mobile APP and PC remote monitor, and vehicle fleet management

GPS track history playback

Support

Remote video liveview

Support remote liveview , voice talk

Video file playback and download

Support check video file by SD card or download the video file into mobile phone to playback.

Network Band

3G WCDMA:2100(B1); 4G FDD-LTE: B1/B3

G-Sensor

3-axis G-Sensor

Loop Recording

Support

Parking Monitor

Support

Front Camera

1080P C2395 , 4glass camera lens , 120 degree wide view

Back camera

USB 480P

Video resolution

Front cam : 1920x1080p @25fps; Back cam: 640x480p @ 15fps

Video compression format

H.264

Video format

TS

Standby power consumption

4MAH

Hotspot

Support WIFI hotspot

Input/Output

Speaker

Build in speaker ( 1.5W/8R speaker)

 MIC

Build in MIC-Phone Noise Reduction

TF card

Support TF card, maximum 128GB(not included)

USB

Mini USB 2.0

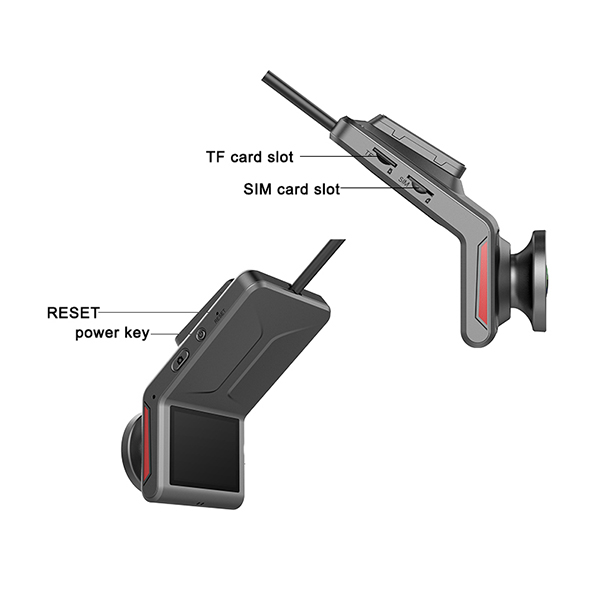

Key button

Power button/Photo button/ Reset key

RESET

Support

powered by

External power

BMW line power supply 12V; power supply voltage 9V-16V

Temperature
and humidity range

Temperature

Usage: -20~+70°C

Storage: -30~+85°C

humidity

Usage: 4%~90%RH

Storage: 40%RH

Product Size

87mm x 71mm x  33mm

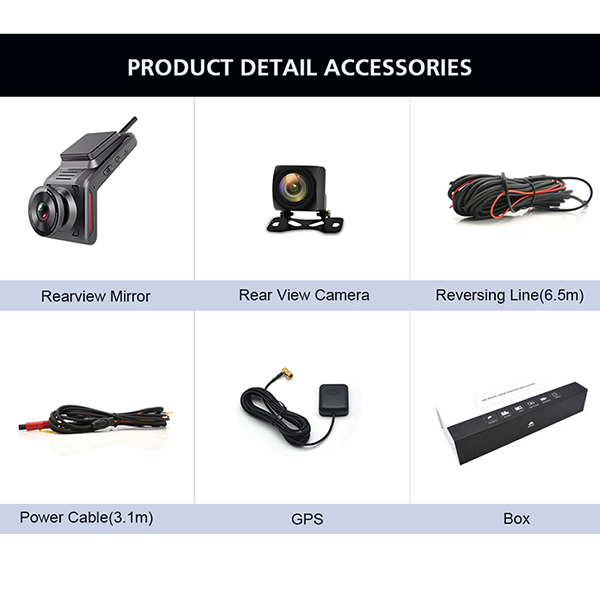

Package

1x dash camera; 1x power cable; 1x rear camera kits , 1x user manual

Mobile APP "CloudDVR"  for Android/ iOS

Parking Monitor

Support capture front and rear camera video and image

Real-time preview

Support  video live preview

Two way voice talk

Suppore press and two way voice talking

GPS track history

Support GPS logger path and video synchronous playback

Monitor and Alarm

Support Message / photo alarm if collision happened when car parking

Video download

Support Point-to-point video download to the phone, don't consume internet data

Share video to alburm

Support car life
