4G Mirror Car DVR Home>Products>4G Mirror Car DVR

AY-MDC68

Product Category:

4G Mirror Car DVR

Product Figure:

  • Features
  • Technical parameters
  • Product Application

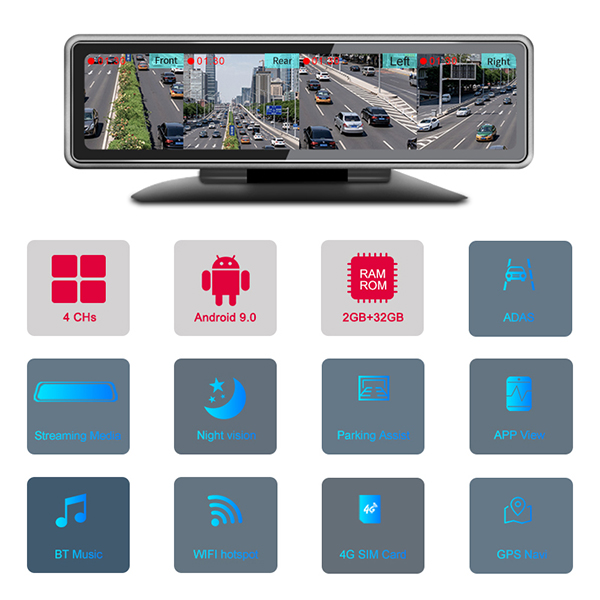

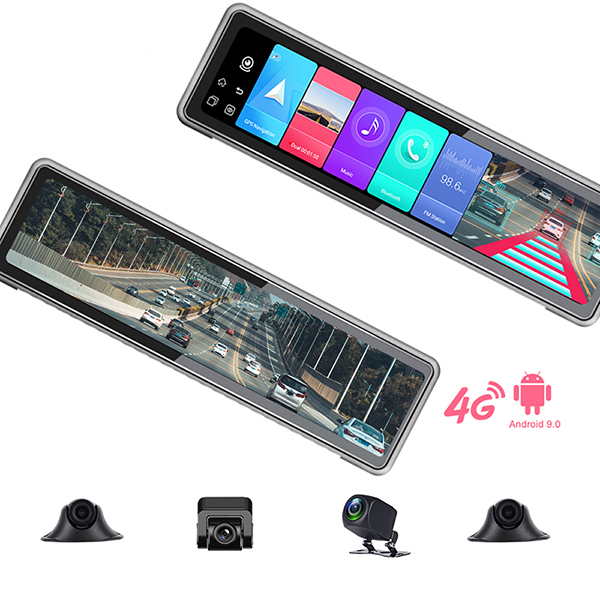

12inch 4G 4-CHs Android
1. 12inch touch screen
2. CPU:AC8257 Cortex-A53 Quad Core , 2.0GHz
3. Android 9.0 with RAM2G+ROM32G
4. Internet band:2G GSM B5/B3/B8; 3G WCDMA B1/B5/B8;4G TDD-LTE B38/B39/B40/B41;4G FDD-LTE B1/B3/B5/B8    5.GPS+Beidou dual mode gps location
6.4 CHs AHD 720P night vision recording
7. WIFI function+ Bluetooth
8. G-sensor +Loop recording
9. MAX 512G card with class 10
10. Remote monitor withe App car assist
11. cmsv6 app for the vehicle fleet management
12. center console base for installation or the special mount installd 9.0 Car camera

Model No.

 AY-MDC68

Screen

12inch touch screen

O.S

Android 9.0 2+32G

GPS navigation

Beidou+ External GPS antenna

3G/4G internet band

2G GSM B5/B3/B8;

3G WCDMA B1/B5/B8;

4G TDD-LTE B38/B39/B40/B41;

4G FDD-LTE B1/B3/B5/B8

Cams

4 cams recording at the same time, with night vision function

View angle

170 degree

Video resolution

AHD720P recording at the same time

Video code

H.264

video format

T.S

Image format

JPEG

Memory storage

MAX 512G with class 10 or above

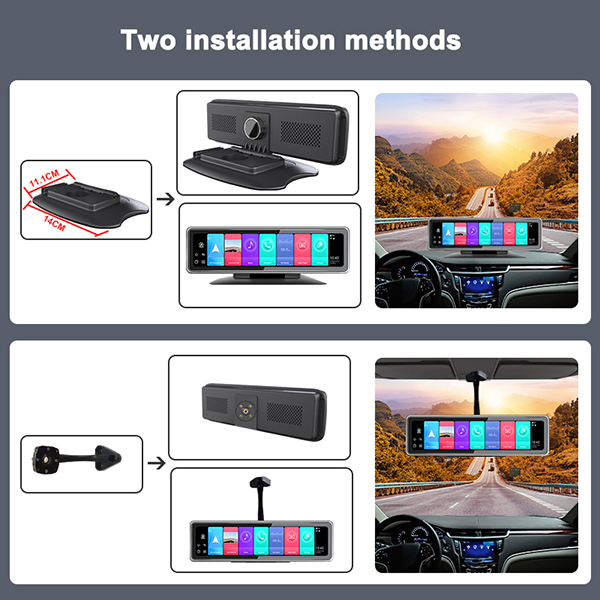

installation

center console base or the special bracket to replace original rearview mirror

The function from APP Car Assist

Live video streaming

support

GPS tracking history check

support

Mobile remote monitor

support

image or video capture

support

24H parking monitor

support

alarm message

support

intercom function

support

The function with the cmsv6 tracking platform

upload video to cloud

support

video playback on PC

support

GPS tracking check

support

video download to PC

support

fleet management

support

if you need, we also can help on the cmsv6 license activate

Item size

310*85mm

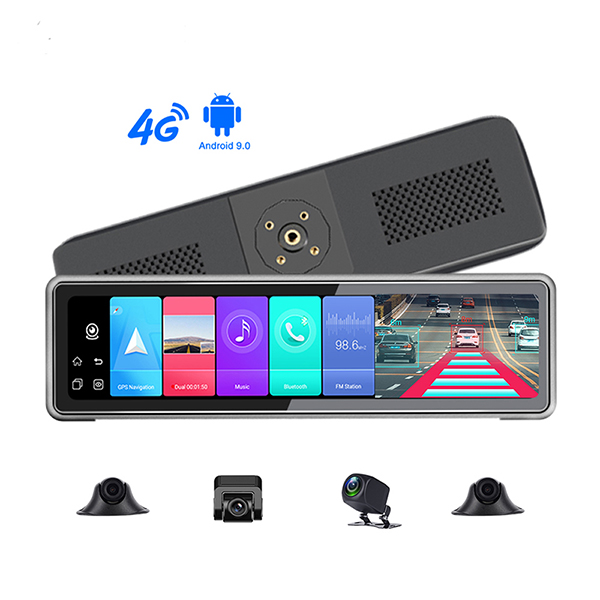

Package content

1xAY-MDC68 car camera

4x cams

1x rear camera cable 8 meters in the length

1x left cam cable 3.5 meters in the length

1x right cam cable 3.5 meters in the length

1x GPS antenna

1x center console base

1x power cable

1x user manual

Unit weight

4KG
