AY-MRH8104AHD

Product Category:

Mobile DVR

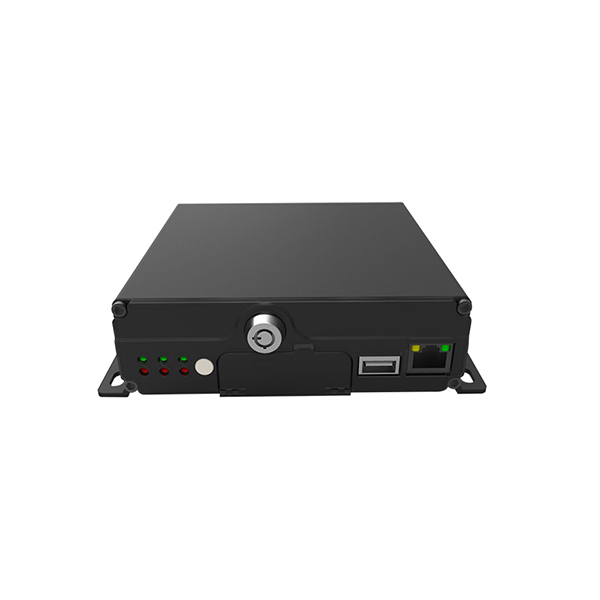

Product Figure:

  • Features
  • Technical parameters

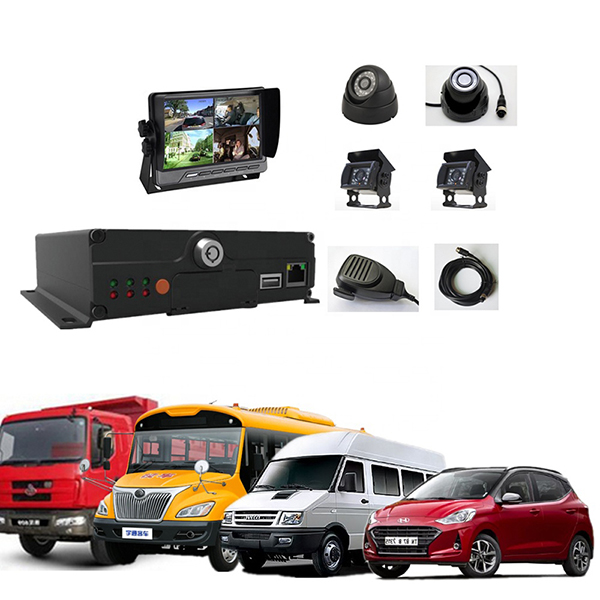

  • Product Application

4CH 1080P mobile DVR -4CH any AHD/analog camera
H.265 video compression
2 video output (1 HDMI output, 1 CVBS output)
Supports 1920x1080/1280x720/960x540 pixels

Support 1pcs SD Card  (Max. 512G ) storage

Support wide range of voltage input (8V~36V)
3-alarm sensors input, 1 speed input, 1 ignition input, 1 panic button alarm, 1 G-sensor alarm
One RS232 port (for GPS)
Power output for cameras: 10.5V/1.5A (8 cameras)

Model

AY-MRH8104AHD

System

OS

Linux 3.0

Booting time

<30s (from powered on to start recording)

Languages

English/simplified Chinese

UI

GUI

Encoder

H.265 main/high profile ,4CH 1080P/4CH 720P@25FPS/30FPS recording

Power

Power in: 8-36V DC, power out for analog camera: 12V/1.5A (4 cameras)

Video

Video input

4ch 1080/720/540p analog/AHD cameras

Video output

2ch video output (1 HDMI output, 1 CVBS output)

Preview

Support full screen/dual view/quad view

Record mode

Auto record, schedule record, alarm record

Record file

Record video and audio at same time

Compression

H.265 (high profile up to level 4.1)

Audio

Audio input

4 audio inputs (audio is built in the camera)

Audio compression

PMC (according to different camera models)

Video process

Record resolution

Supports 1920x1080/1280x720/960x540

Bitrate

100-8000kbps for each camera

Storage

Supports up to 512G SD card

Alarm

Alarm input

3 alarm sensors input, 1 speed input, 1 ignition input, 1 panic button alarm, 1 G-sensor alarm

Alarm output

1 beeper, alarm OSD

Event

Video loss event, over speed event, g-sensor event, storage event, motion detection event, panic button event

Communication

RS485

One RS485 port

RS232

One RS232 port (for GPS)

RJ45

One RJ45 port, 100m network

USB

One USB, can be used for mouse, USB stick

Network

Protocol

TCP /IP

3G/4G

Optional, built in

3G/4G (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE)

Location

Location

Location feature is optional, supports GPS/GLONASS/BEIDOU, recording location, speed, live tracking

Firmware

Frame rate

Recording frame rate: 1-30fps able for each camera

License ID

Supported

Camera name

Supported

OSD

Display and record time, license ID, camera name, location, speed

Firmware upgrade

Can use USB disk/SD card/remote upgrade via 4G

G-sensor

Supported

Play back

Supports play back, file listed by time, alarm

Play speed

Supports from 1/32 to 32

Software

Player

Player software, play multiple cameras together, can also play the encrypted file

CMSV6

Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade

Power input

Power input

8-36VDC

Power output

Power output

Power output for cameras: 10.5V/1.5A (8 cameras)

Other

Size

162.3x133.0x30.2 mm

Weight

About 1.08kg

Time

Internal clock, can synchronize with GPS

Dual bit stream

Two different bit stream for recording and live streaming via 4G/3G

Power protection

Protect power from short cut, over load and error connection

Default

Can set to default setting

Light indicator

Light indicator for power, run, alarm network, 4G/3G

Over write

Supported

Time synchronize

Synchronize with GPS

Working condition

Working temperature

-25 to 55°C

Working humidity

5-93%
