Monitor Home>Products>Monitor

AY-MS07A

Product Category:

Monitor

Product Figure:

  • Features
  • Technical parameters
  • Product Application

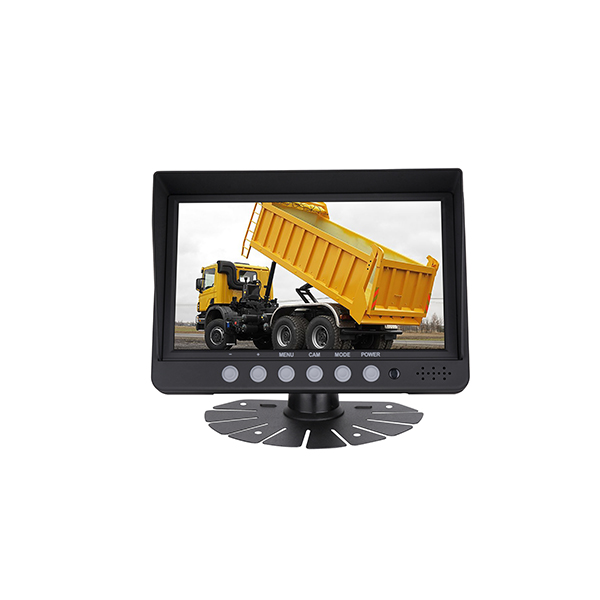

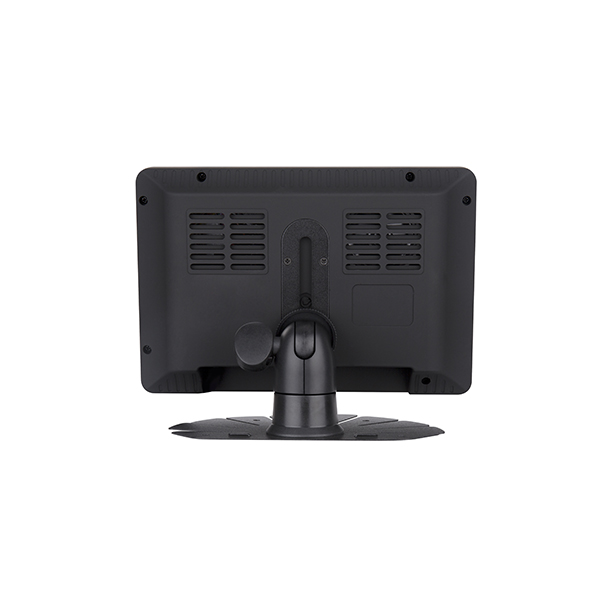

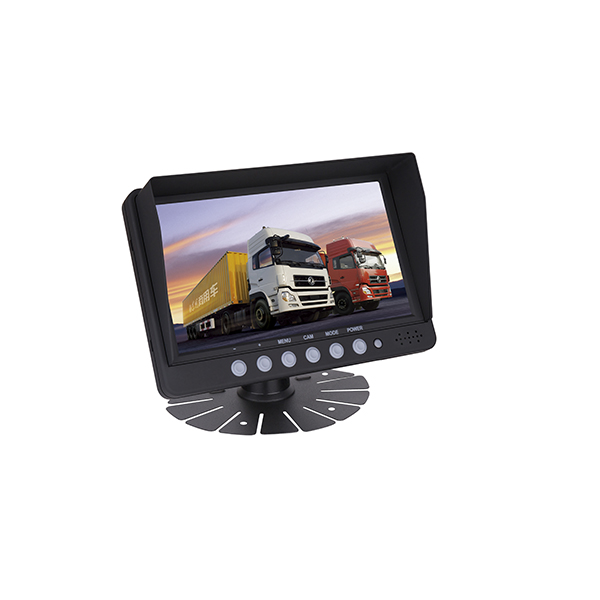

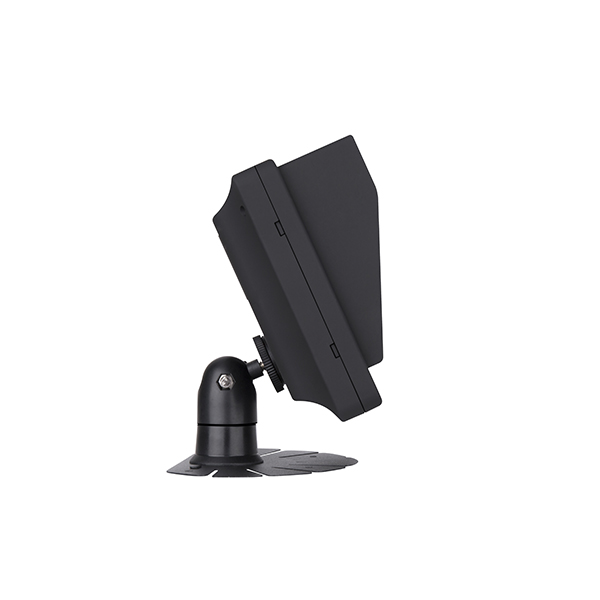

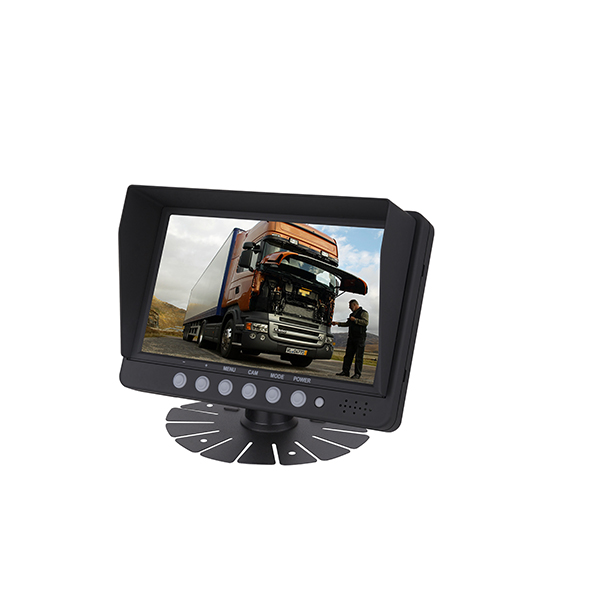

Buy 7 inch high definitionAHD digital TFT color LCD camera monitor for car, bus at factory price, It canforms a complete AHD rear view camera system with AHD rear view cameras, whichhelps driver parking and eliminate all the blind spots. This is the newest 7inches LCD monitor for vehicles adopting AHD technology, with 16:9 1024*600pixels high resolution, with a real and high brightness of 300cd/, this 7 inch AHD lcd display is perfectfor car, school bus, urban bus, journey bus, traffic patrol car, truck,commercial van, light pick up truck, trailer etc.

Screen size

7"; 16:9

Resolution

1024 (W)* R.G.B * 600 (H)

Color system

PAL/NTSC/AUTO

Brightness

300cd/

Contrast

500:01:00

Visual range

154.08*85.92mm

Viewing angle

Left/ Right/ Up/ Down 65°/ 65°/ 40°/ 65°

Image setting

Brightness, Chroma, Contrast

Video format

AHD

Mirror Image Rotation

Non-mirrored, Mirrored, Rotation, Mirrored ratation

Video input

2 CH input

Circular function

Could setup the single channle circulate time 0-15S

Reverse function

1-CH reverse(Parking lines setup function)

Reversing delayed

0-15s

Language

English, Dutch, French, Portuguese, Spanish, Russian, German

Power consumption

12/24V DC, <6 watts

Working temperature

-20 to +65

Storage temperature

-25 to +70

Speaker

Optional
