Vehicle/car camera Home>Products>Vehicle/car camera

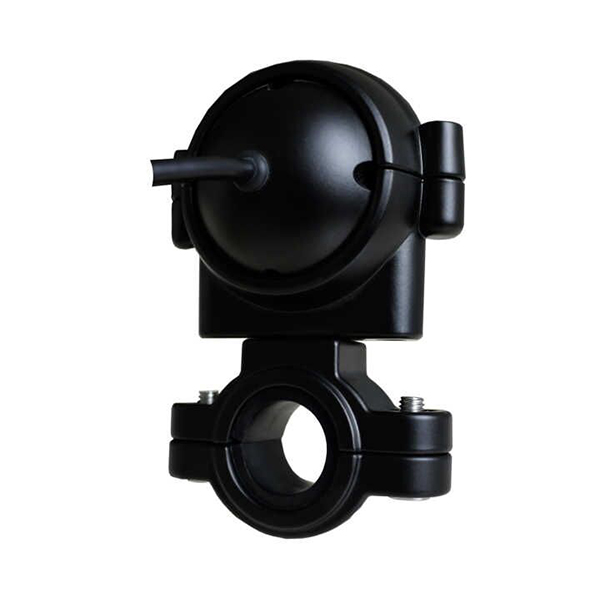

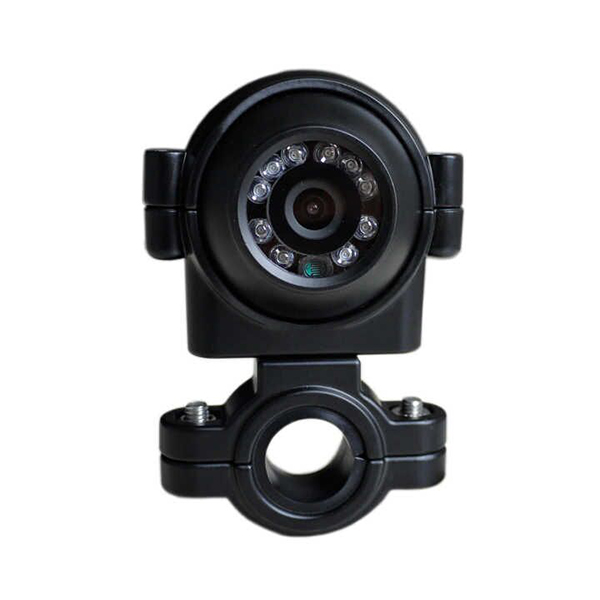

AY-CWC58CP

Product Category:

Vehicle/car camera

Product Figure:

  • Features
  • Technical parameters
  • Product Application

★ Support AHD and Analog standard definition AHD output,the image is crisp and clear,1080p.

★ Adopt motor-driven ICR filter switch, stable performance, stronger anti-vibration ability.Completely solve the problem of color deviation of green plants under ultraviolet rays.

★ Support ICR switch, achieving day and night surveillance.

★ High color rendition, the reality image.

★ High reliability,IP69K.


Application scenarios:

suitable for school bus, container trucks, harvesters, excavators and other side view camera, Mounting rod diameter: Ф20 ~ 30mm.

Model

AY-CWC58CP

Image Sensor

1/2.9" progressive scan CMOS

Horizontal Resolution

2.0Megapixel

TV system

PAL/NTSC

Effective pixels

1920(H)*1080(V)

Minimum Illumination

0.01Lux@(F1.2,AGC ON),0Lux with IR

S/N

≥40dB

Day and night switch

Motor Driver ICR Filter Switch (Magnetic Valve Driver ICR optional)

Auto Gain Control

Support

Back light compensation

Support

White Balance

AUTO

Digital Noise Reduction

Adaptive digital noise reduction,2D/3D-DNR

Electronic Shutter

AUTO/1/501/60-150000Sec

Video Output

Follow AHD standard

Image Function

Original/Reverse image

Output Adapter

4P aviation head cable

Lens

3.6mm(6mm Optional)M12*P0.5

IR LEDS Quantity

10 PCS Φ5 LEDS

IR distance

1015 meters

IP grade

IP69K

Operating Temperature/Humidity

-30°C~+70°C/Humidity≤90%(No condensation)

Power Supply

DC12V±10%

Power Consumption

≤2.5W

Dimension

112.5*75*50(mm)
