AY-CWC36CM

Product Category:

Vehicle/car camera

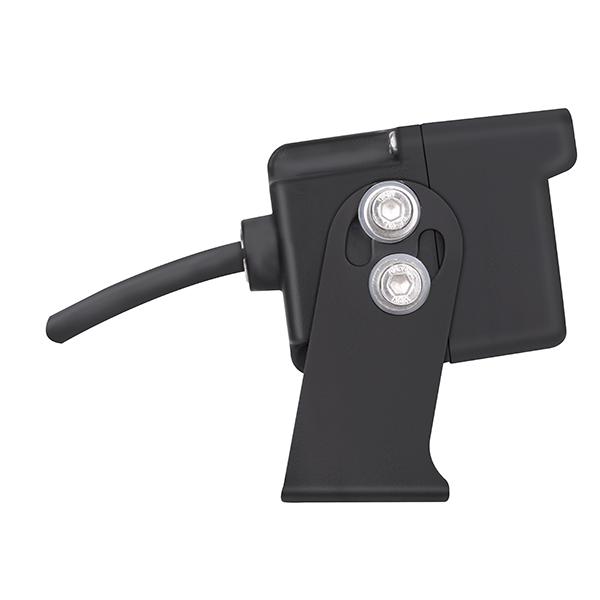

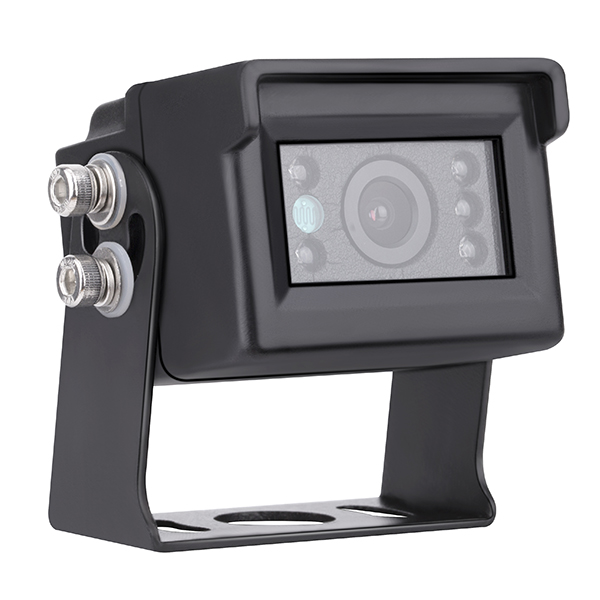

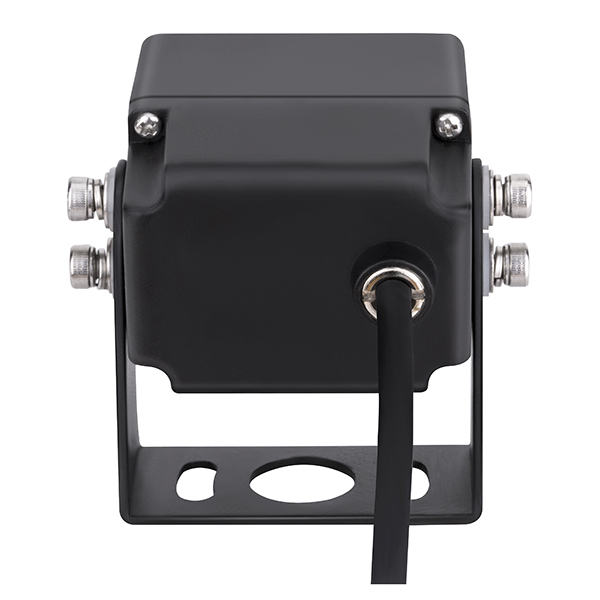

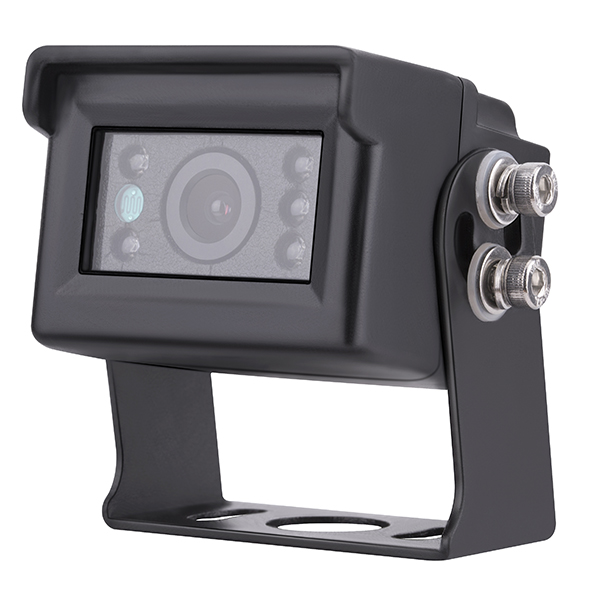

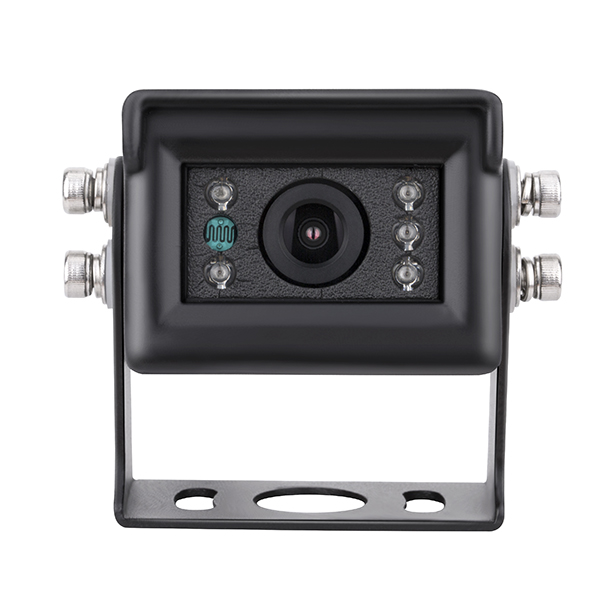

Product Figure:

  • Features
  • Technical parameters
  • Product Application

Features

-Specialized structure for vehicle: easy assembly and disassembly; lockable angle and anti-vibration;

-Adapt to volatile environments;

-Anti-jamming&low power design: avoid vehicle circuit interface; support high temperature on vehicle roof;

-Audio band-pass filter(optional): reduce vibration noise of vehicle engine and frame

-Good surveillance solutions for public bus, taxi, school bus, law enforcement, truck, coach, trains&trams

Specification:

 Image Device

 1/2.9" COLOR CMOS

 TV System

 25 frames / 30 frames

 Effective Pixels

 1920*1080 pixels

 Sensing Area

 2.9µm x 2.9µm

 Scanning System

 Interlace

 Sync. System

 Internal

 Resolution

 1080P

 Minimum Illumination

 0.01 Lux,0 Lux (with IR)

 Microphone

 Optional

 Video Format

 AHD

 Video Output

 1.1Vp-p75Ohm

 Gamma Consumption

 0.45

 AGC

 Auto

 S/N Ratio

 Better than 52dB

 White Balance

 Auto

 Electronic Shutter

 Auto1/25 (PAL), 1/30 (NTSC) ~ 1-50000 Second

 BLC

 Auto

Waterproof Standard

IP69K

 Current Consumption

 Max.280mA(DC12V,w/o heater or Max.550mA (DC12V, with heater

 Power Supply

 DC12V or DC10~32V

 Operation Temperature

 -20℃~+70, RH 95% Max.

 Storage Temperature

 -30℃~+80, RH 95% Max.

 Lens

 2.8mm/3.6mm (depending on models)

 Lens Angle

 130°/110°(depending on models)
