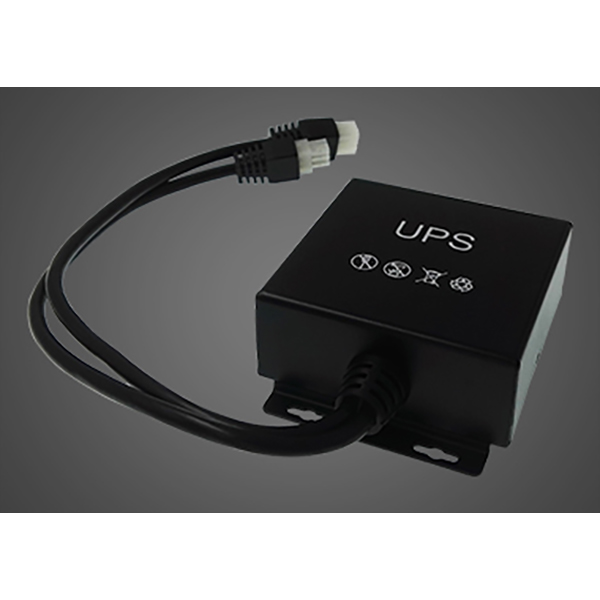

UPS

Product Category:

Accessory

Product Figure:

  • Features
  • Technical parameters
  • Product Application

IC control technology and multiple protection circuit
High-efficiency current output, high-capacity branded lithium battery
Friendly and easy to install
Special vehicle power supply input and output ports
All-metal shell design for vandal proof
Long battery life, outstanding high temperature durability, no memoryeffect and Environmentally Friendly


Main Specifications



Charging input voltage and current

Output voltage and current

Capacity batteries

Power stability and accuracy

Remark

12V  2.6A(MAX)

9.6V

1.4A

3 series 18650 1400mAh

≤±10

-2075working normally



Product Size

115.0mm*88.5mm*42.2mm

Parameters

No.

Projects

Technical indicators

Unit

Remark

1

working temperature

-2075



2

vibration resistance

MIL-STD-810F



3

power performance

ISO 7637





4

shock limit

≤2000

G

19,600M/S2@1MS

5

waterproof rating

IP53





6

machine power

0.01

W



7

cooling

metal cooling



natural cooling

 Input Characteristics

No.

Projects

Technical Requirements

Unit

Remark

1.1

Input voltage

8V36V

Vdc



1.2

Conversion efficiency

≥85%





1.3

Maximum input current

≤2.6

A

12V below

Output Characteristics

No.

Projects

Technical Requirements

Unit

Remark

2.1

Output Current Range

01.4

A



2.1

Output Voltage Range

89.7

V



2.3

Noise

≤50

dB



Protection Characteristics

No.

Project

Technical Requirements

Unit

Remark

3.1

Discharge voltage protection (batteries)

8

V

Over discharge release 7V

3.2

Charging voltage protection (batteries)

10.9

V

Overcharge release 10.95V

3.3

Load current (batteries)

≥1

A



3.4

Output over-current

≥6

A

Lock(protection)

Work and charging time

It can work for half an hour or so with 12W Loads.

Charging voltage :12V, Maximum current:2.6A, charging time:≥40min

Remark:



Type and model

Power Range

SD Card Machines

5W~7W without Camera,15W~17W with 4 Cameras

SD Card Machines

Hard Drive

7W~9W without Camera,17W~19W with 4 Cameras
