AY-MR8104AHD

Product Category:

Mobile DVR

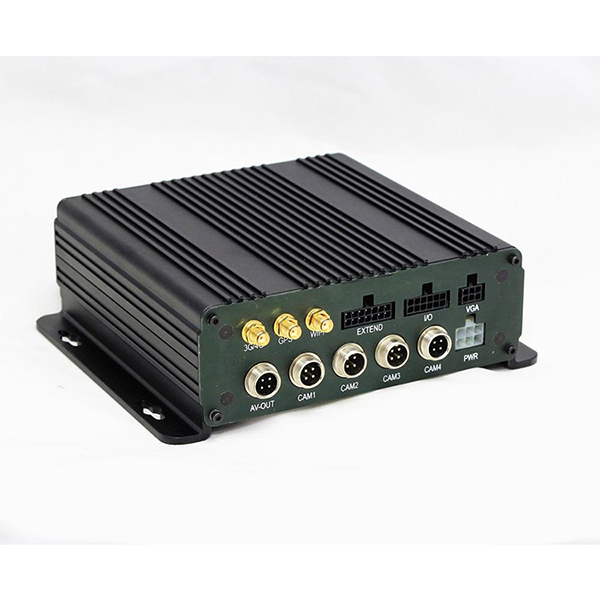

Product Figure:

  • Features
  • Technical parameters
  • Product Application

      Built-in high performance Hisilicon chipsets, coded with H.264 standard, high

compression rate and image qulity

  4CH AV Inputs with AHD 720P/960H/D1/CIF optional, 1CH synchronized AV output,

1CH VGA output

  4CH local recording with 720P resolution in real time

Power:

  Professional In-Vehicle power design, 9-32V DC Wide Voltage Range

  Multi protection circuits like under-voltage, short, reversed plug-in

  Smart power management system, shutdown under low voltage, low consumption

when standby

Data Storage:

  Special file management system to encrypt and protect the data

  Proprietary technology to detect the bad track of the SD card which can make sure

the continuity of video and long service life of the SD card

  Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage

  Support SD card storage, maximum 256G

Transmission Interface:

  Support GPS/BD optional, high sensitivity, fast positioning

  Support wireless download by WiFi, 802.11b/g/n, 2.4GHz

  Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA

Technical parameter:

Item

Device parameter

Performance

System

Main processor

Hi3520DV200

Operating system

Embedded Linux OS

Operating language

Chinese/English

Operating interface

GUI, Support mouse

Password security

User password/Admin password

Audio & Video

Video standard

PAL/NTSC

Video compression

H.264

Image resolution

720P /960H/D1/CIF

Playback quality

720P /960H/D1/CIF

Compound mode

4ch 720P/4ch 960H/2ch 720P+2ch 960H

Decoding ability

1ch 720P real time

Recording quality

Class 1-6 optional

Image display

Single/QUAD display optional

Audio Compression

G.726

Audio recording

Audio & Video synchronized recording

Recording & Playback

Recording mode

Manual/Alarm

Video bit rate

Full frame 4096Mbps6 classes image quality optional

Audio bit rate

8KB/s

Storage media

SD card storage

Video inquiry

Inquiry by channel/Recording type

Local playback

Playback by file

Firmware upgrading

Upgrading mode

Manual/Automatical/Remote

Upgrading method

USB disk/Wireless network

Interface

AV input

4ch aviation interface

AV output

1ch VGA video output, 1ch aviation AV output

Alarm input

4 digital inputs (2 Positive trigger, 2 negative trigger)

SD card

1 SDXC High speed card (up to 256G)

USB interface

1 USB 2.0 (support U disk/mouse)

Ignition input

1 ACC signal

UART

1 LVTTL Level

LED Indication

PWR/RUN/SD/ALM

SD card lock

1

Debug port

1

Function extention

GPS

Support detecting antenna Plug in/Unplug/Short circuit

WIFI

802.11b/g/n, 2.4GHz

3G/4G

Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

Others

Power input

9~32V DC

Power output

5V 300mA

Power consumption

Standby 3mA

Maximum consumption

18W @12V 1.5A @24V 0.75A

Working temperature

 -20 --- 70

Storage

720P 1G/h/channel

960H 750M/h/channel

Dimension

142*152*32 mm
