Vehicle/car camera Home>Products>Vehicle/car camera

AY-SED610PTD

Product Category:

Vehicle/car camera

Product Figure:

  • Features
  • Technical parameters
  • Product Application

Product:

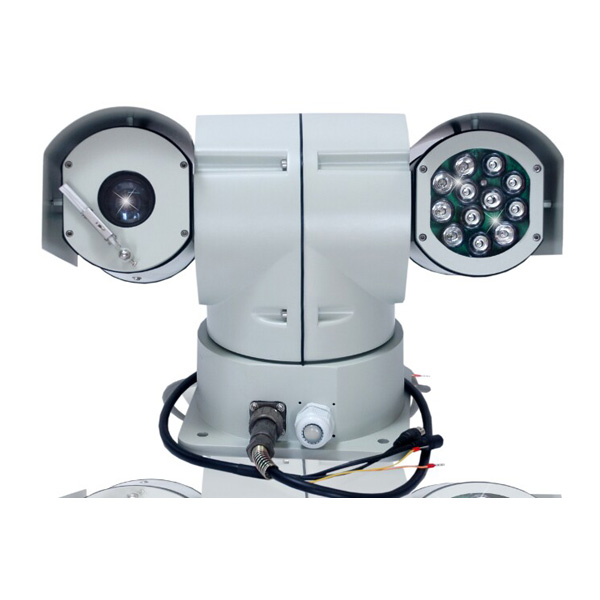

Intelligent vehicle outdoor long distance IR lightinghigh-speed ROC large pan tilt zoom cameras all-weather environment, highstrength aluminum alloy shell, impact resistance, corrosion resistance
Features:
ØQuickly capture target, infrared night vision distance is greater than 100meters
ØNewest 4th generation reflection type IR LED, the luminous efficiency superelevation
ØHorizontal 360° unlimited rotation, vertical (+ 90° ~ 90°) rotation, withoutthe blind spots
ØBuilt-in OSD menu, English and Chinese, through the menu change the cameraparameters
ØUses 0.9° the precision motor-driven, no vibration smoothly
ØLocking the black bracket on the default location, make the screws waterproofing
ØPut the product on bracket, locking the 3 screws, then connect cable at theproduct interface
ØPower on, adjust the camera until the image appears appropriate scene, settingcustomer function


Specification:

 Image Device

 1/2.9" COLOR CMOS

 TV System

 25 frames / 30 frames

 Effective Pixels

 1920*1080 pixels

 Sensing Area

 2.9µm x 2.9µm

 Scanning System

 Interlace

 Sync. System

 Internal

 Resolution

 1080P

 Minimum Illumination

 0.01 Lux,0 Lux (with IR)

 Microphone

 Optional

 Video Format

 AHD

 Video Output

 1.1Vp-p75Ohm

 Gamma Consumption

 0.45

 AGC

 Auto

 S/N Ratio

 Better than 52dB

 White Balance

 Auto

 Electronic Shutter

 Auto1/25 (PAL), 1/30 (NTSC) ~ 1-50000 Second

Zoom

Optical 27X

Max Speed

Pan: 300°/S; Tilt: 120°/S

Manually Controlled

Pan: 0°~220°/S; Tilt: 0°~90°/S

Range

Pan: 100°/S; Tilt: 80°/S

Preset

256 Presets

 BLC

 Auto

Waterproof Standard

IP68

 Power Supply

DC11V ~ DC18V

 Operation Temperature

 -20℃~+50, RH 95% Max.

 Storage Temperature

 -30℃~+80, RH 95% Max.

Dimensions(L x W x H)

 210 x 375 x 240mm

Packing Size(L x W x H)

260 x 350 x 300mm

Product Weight

 Net: 6250g, All: 8580g
