Vehicle/car camera Home>Products>Vehicle/car camera

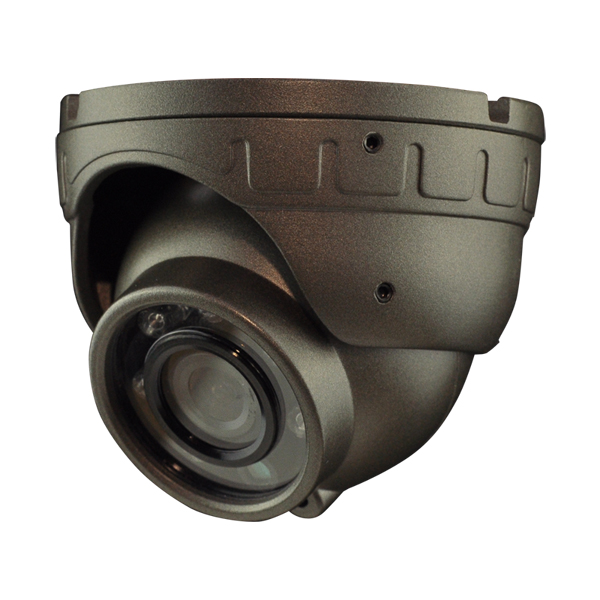

AY-DC22CM

Product Category:

Vehicle/car camera

Product Figure:

  • Features
  • Technical parameters
  • Product Application
Features of HD Camera:
  • Flexible installation: Can be mounted on rear, front, or either side of vehicles
  • Clear picture even at night due to sensor of low illumination and good performance, and IR led lights
  • Performs in rugged conditions. Operating temperature: -20ºC +70ºC
  • Mirror/ Normal image switch
  • 25 frames / 30 frames able
  • with audio
  • Lens angle: CCD: 130°, 110°
  • IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight.
  • Waterproof and weather resistant housing for outdoor use

Specification:

 Image Device

 1/2.9" COLOR CMOS

 TV System

 25 frames / 30 frames

 Effective Pixels

 1920*1080 pixels

 Sensing Area

 2.9µm x 2.9µm

 Scanning System

 Interlace

 Sync. System

 Internal

 Resolution

 1080P

 Minimum Illumination

 0.01 Lux,0 Lux (with IR)

 Microphone

 Optional

 Video Format

 AHD

 Video Output

 1.1Vp-p75Ohm

 Gamma Consumption

 0.45

 AGC

 Auto

 S/N Ratio

 Better than 52dB

 White Balance

 Auto

 Electronic Shutter

 Auto1/25 (PAL), 1/30 (NTSC) ~ 1-50000 Second

 BLC

 Auto

 Current Consumption

 Max.280mA(DC12V,w/o heater or Max.550mA (DC12V, with heater

 Power Supply

 DC12V or DC10~32V

 Operation Temperature

 -20+70, RH 95% Max.

 Storage Temperature

 -30+80, RH 95% Max.

 Lens

 2.8mm/3.6mm (depending on models)

 Lens Angle

 130°/110°(depending on models)
