AY-FMR8028

Product Category：

Mobile DVR

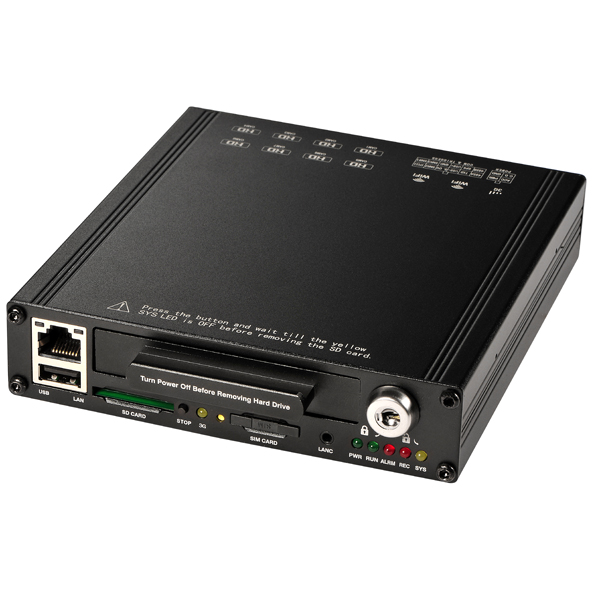

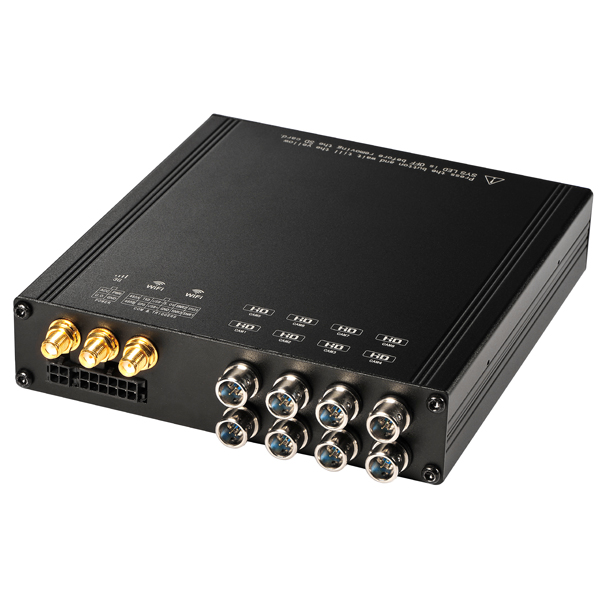

Product Figure：

Features
Technical parameters
Product Application

Product MainFeatures
·          Embedded operating system, assuring reliability and system integrity.
·          Records up to four channels of full-motion color video with corresponding audiotracks.
·          H.264 High Profile video compression.
· 4ch 1080p/720p/540p Digital Camera Recording + 4ch 1080p/720p/540p Analog/AHD cameras
·          Lockable security enclosure.
·          Front panel USB2 port for recording to a flash card as an optional storagedevice.
·          Ignition sense that provides DVR power-on in recording mode when the bus isstarted.
·          Power-off delay record when the bus is shut-down with operator-ed delaytimes.
Video And Audio
·          H.264 Main/High Profile, 4ch 1080p/720p/540p Digital Camera Recording + 4ch 1080p/720p/540p Analog/AHD cameras
·          Audio compression:16bit 48KHz AAC codec. This codec offers high compressionwith high quality audio.
·          1080Presolution for each channel, which means each channel support1920x1080@30fps.
·          Support 8 channel real time1080P video and 8 channel audio recording.
·          Real time live HD video and audio through WiFi, support Windows, Android and iOS
·          Recorded HD video and audio real time playback over WiFi
GPS Time Synchronization &Time Zone
·          Synchronize the DVR system time with GPS automatically
·          Support All Time Zones Worldwide
·          Support DST (Daylight Saving Time)

PowerManagement
·          Reliable power management, wide voltage: +8V~+32VDC; The power input isprotected against short positive transient (1500 watts peak pulse powercapability with a 10x1000 us waveform); The power input is protected againstnegative voltage. Applicable for vehicles with +12V or +24V battery.
·          The recorder provides each camera with stable +12V DC power; DVR can detect theshort cut on power circuit.
·          Can use ignition to control the power.
·          DVR can monitor battery voltage after Ignition off, and auto into sleep modewhen voltage is bellow specified level.
Recordingmode
·          Continuous record.
·          Support schedule recording.
·          Support alarm recording.
Speed andVehicle status recording
·          Record vehicle speed and car id with audio and video.
·          Support 5 sensors, can be connected to speed, ignition, brake, return, rightturn, left turn light etc.
·          Over-speed alarm and trigger recording with separated files
G-Sensor
·          X, Y, Z axis accelerometer
·          Recorded G-Sensor Values can provide reference of data analyzing when accidencehappened
·          Combined Recording can be triggered when G-Sensor values go beyond threshold
SD card
·          Support SDHC card within 32GByte.
·          Support SDXC card more than 64GByte (Maxim 2048GByte)
·          Support hot-plug when the DVR system is not recording or remote-operation(remotecopying or playing back)

Note: If you remove the SD card while recording or operating (remotecopying or playing back), it might cause the damage of the files on SD card.While recording, the yellow light on the front panel will be on. So please stoprecording or operating until the yellow light is off if you need to remove theSD card.
Multipleplayer supported
You mayuse manufacturer’s PC Playback Software or any of the following third partymedia player to play back the record file.
·          VLC media player (version1.0.0 or above);
·          Storm player (Version 2009 or above);
·          Winamp (Version 5.531 or above).

Model		AY-FMR8028
System	Operating System	Linux 3.0
	Start up Time	<30 s (From Powered on to start recording)
	Operator Interface	English / Simplified
	Storage	Hard Disk (2TB)
	Video System	H.264 Main/High Profile, Each camera HD 1080p30fps/720p30fps/540p30fps recording
	Voltage Input / Output	Power In: 8V ~ 32V DC, Power out for analog camera: 12V/1.5A (4 cameras)
Video	Video Input	4 1080p/720p/540p Digital Camera Recording+4 1080p/720p/540p Analog/AHD cameras
	Video output	2 Video Output (1 HDMI output, 1 CVBS output)
	Preview	Support Full Screen/Dual View/Quad View/6 Cameras/8 Cameras
	Record Mode	Auto Record, Schedule Record, Alarm Record
	Record File	Record video and audio at same time
	Compression	H.264 (High profile up to level 4.1)
	Frame Rate	30fps@1080p for each camera
Audio	Audio Input	8 audio input (audio is built in the camera)
Audio	Audio compression	AAC (16bit, 48KHz) and PMC (according to different camera models)
Video Process	Record Resolution	Support 1920x1080/1280x720/960x540
	Bitrate	100～8000 kbps for each camera
	Storage	Support up to 6TB hard disk，one up to 256G SD card. SD card can be used as backup storage for hard disk when hard disk error
Alarm	Inputs	3 alarm sensors input, 1 speed input, 1 ignition input, 1 panic button alarm, 1 G-Sensor alarm
	Outputs	1 beeper, Alarm OSD
	Event	Video Loss Event, Over Speed Event, G-Sensor Event, Storage Event, Motion Detection Event, Panic button Event.
Communication	RS485	One RS485 por
	RS232	One RS232 port (For GPS)
	RJ45	One RJ45 port, 100M network
	USB	One USB, can be used for mouse, USB stick
Network	Protocol	TCP / IP
Network	3G/4G	Optional, build in 3G/4G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-L TE)
Location	Location	Location feature is optional, Support GPS/GLONASS/BEIDOU， recording location, speed, live tracking
Firmware	Frame Rate	Recording frame rate: 1～30fps able for each camera
	License ID	Support
	Camera Name	Support
	OSD	Display and record time, license ID, camera name, location, speed
	Firmware Upgrade	Can use hard disk/USB disk/SD card/remote upgrade via 4G
	G-Sensor	Support
	Play back	Support play back, file listed by time, alarm
	Play Speed	Support from 1/32 to 32
Software	hPlayer	Player software, play multiple cameras together, can also play the encrypted file
Software	CMSV6	Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade
Power Input	Power Input	8VDC～32VDC
Power Output	Power Output	Power output for cameras: 10.5V/1.5A (8 cameras)
ACC	<4.5V	Ignition Off
ACC	>6.2V	Ignition ON
Power Control	Ignition	Turn on the DVR when ignition is on, can set DVR to turn off after a specified time when ignition is off
Power Control	Power Consumption	Less 5.0W (No camera power consumption included)
Other	Size	162.3x133.0x30.2 mm
	Weight	About 0.55kgs
	Time	Internal clock, can synchronize with GPS
	Dual bit stream	Two different bit stream for recording and live streaming via 4G/3G
	Power Protection	Protect power from short cut, over load and error connection
	Default	Can set to default setting
	Light Indicator	Light Indicator for power, run, alarm network, 4G/3G
	Over Write	Support
	Time Synchronize	Synchronize with GPS
Working Condition	Working Temperature	-25 ～ 55°C
Working Condition	Working Humidity	5%～93%
